8-1393480-3
ActiveTE Connectivity AMP Connectors

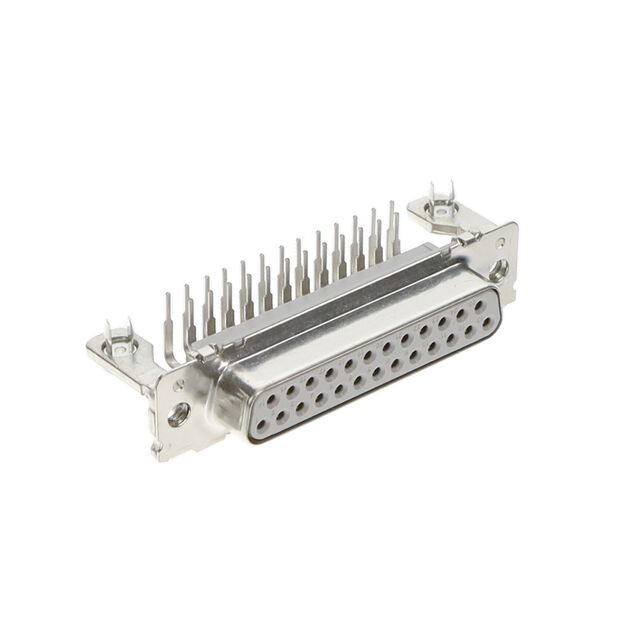

CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1393480-3
ActiveTE Connectivity AMP Connectors
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8-1393480-3 | 1393480 Series |
|---|---|---|
| Backset Spacing | 9.43 mm | 9.43 mm |
| Backset Spacing | 0.371 in | 0.371 in |
| Color | Gray | Gray, Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Plug, Male Pins, Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.51 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 20 - 30 Áin |
| Contact Material | Copper Alloy | Copper Alloy, Phosphor Bronze |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 2.2 A | 2.2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester | Polybutylene Terephthalate (PBT), Polyester |
| Features | - | Grounding Indents, Board Lock, Mounting Brackets, Ground Strap |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (M3), Housing/Shell (4-40), Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | - | 9 - 15 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Size, Connector Layout | - | 2 |
| Shell Size, Connector Layout [custom] | DB, B | DE, E, DB, B |
| Shell Size, Connector Layout [custom] | 3 | 1 - 3 |
| Termination | Solder | Solder |
1393480 Series
CONN D-SUB PLUG 9POS R/A SLDR
| Part | Connector Type | Connector Style | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Number of Positions | Flange Feature | Number of Rows | Mounting Type | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Dielectric Material | Color | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-1393480-2 | Male Pins, Plug | D-Sub | Grounding Indents | DE, E | 1 | Signal | 9 | Housing/Shell (M3) | 2 | Through Hole, Right Angle | Solder | |||||||||||||
TE Connectivity AMP Connectors 8-1393480-3 | Receptacle, Female Sockets | D-Sub | B, DB | 3 | Signal | Housing/Shell (4-40) | 2 | Through Hole, Right Angle | Solder | Gold | -55 °C | 125 °C | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | 0.76 Ám | 30 Áin | 2.2 A | Polybutylene Terephthalate (PBT), Polyester | Gray | |||
TE Connectivity AMP Connectors 5-1393480-5 | Receptacle, Female Sockets | D-Sub | DE, E | 1 | Signal | 9 | Housing/Shell (Unthreaded) | 2 | Through Hole, Right Angle | Solder | Gold | -55 °C | 125 °C | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | 2.2 A | Polybutylene Terephthalate (PBT), Polyester | Gray | ||||
TE Connectivity AMP Connectors 1-1393480-7 | Receptacle, Female Sockets | D-Sub | DE, E | 1 | Signal | 9 | Housing/Shell (Unthreaded) | 2 | Through Hole, Right Angle | Solder | Gold | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | Polybutylene Terephthalate (PBT), Polyester | Gray | |||||||
TE Connectivity AMP Connectors 7-1393480-5 | Male Pins, Plug | D-Sub | Board Lock, Grounding Indents | Signal | 15 | Housing/Shell (M3) | 2 | Through Hole, Right Angle | Solder | Gold | -55 °C | 125 °C | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | 2.2 A | Polybutylene Terephthalate (PBT), Polyester | Gray | 2 | ||||
TE Connectivity AMP Connectors 4-1393480-2 | Male Pins, Plug | D-Sub | Grounding Indents, Mounting Brackets | B, DB | 3 | Signal | Housing/Shell (4-40) | 2 | Through Hole, Right Angle | Solder | Gold | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | Polybutylene Terephthalate (PBT), Polyester | Gray | |||||||
TE Connectivity AMP Connectors 8-1393480-6 | Male Pins, Plug | D-Sub | Board Lock, Ground Strap, Grounding Indents | Signal | 15 | Housing/Shell (4-40) | 2 | Through Hole, Right Angle | Solder | Gold | -55 °C | 125 °C | UL94 V-0 | 9.43 mm | 0.371 in | Phosphor Bronze | 0.76 Ám | 30 Áin | 2.2 A | Polybutylene Terephthalate (PBT), Polyester | Black | 2 | ||
TE Connectivity AMP Connectors 1-1393480-9 | Receptacle, Female Sockets | D-Sub | B, DB | 3 | Signal | Housing/Shell (Unthreaded) | 2 | Through Hole, Right Angle | Solder | Gold | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | Polybutylene Terephthalate (PBT), Polyester | Gray | ||||||||
TE Connectivity AMP Connectors 8-1393480-1 | Receptacle, Female Sockets | D-Sub | DE, E | 1 | Signal | 9 | Housing/Shell (4-40) | 2 | Through Hole, Right Angle | Solder | Gold | -55 °C | 125 °C | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | 2.2 A | Polybutylene Terephthalate (PBT), Polyester | Gray | ||||
TE Connectivity AMP Connectors 4-1393480-1 | Male Pins, Plug | D-Sub | Grounding Indents, Mounting Brackets | Signal | 15 | Housing/Shell (4-40) | 2 | Through Hole, Right Angle | Solder | Gold | UL94 V-0 | 9.43 mm | 0.371 in | Copper Alloy | Polybutylene Terephthalate (PBT), Polyester | Gray | 2 |
