5-1393480-5

Active

TE Connectivity AMP Connectors

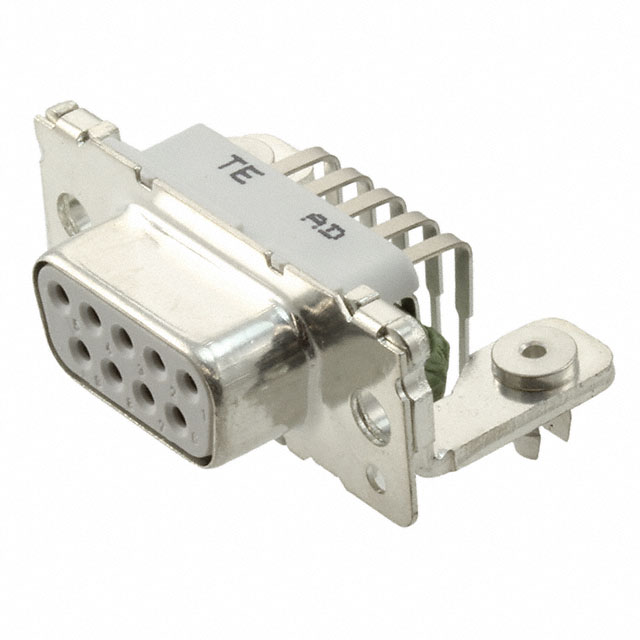

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1393480-5

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.68
		10	$ 4.10
		25	$ 3.99
		50	$ 3.91
		100	$ 3.78

Description

General part information

1393480 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-1393480-5	1393480 Series

Backset Spacing	9.43 mm	9.43 mm
Backset Spacing	0.371 in	0.371 in
Color	Gray	Gray, Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	-	0.51 - 0.76 Ám
Contact Finish Thickness	-	20 - 30 Áin
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	2.2 A	2.2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester	Polybutylene Terephthalate (PBT), Polyester
Features	-	Grounding Indents, Board Lock, Mounting Brackets, Ground Strap
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (M3), Housing/Shell (4-40), Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9 - 15
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout [custom]	DE, E	DE, E, DB, B
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder

1393480 Series

CONN D-SUB PLUG 9POS R/A SLDR

Part	Connector Type	Connector Style	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Number of Positions	Flange Feature	Number of Rows	Mounting Type	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Dielectric Material	Color	Shell Size, Connector Layout
TE Connectivity AMP Connectors 3-1393480-2	Male Pins, Plug	D-Sub	Grounding Indents	DE, E	1	Signal	9	Housing/Shell (M3)	2	Through Hole, Right Angle	Solder
TE Connectivity AMP Connectors 8-1393480-3	Receptacle, Female Sockets	D-Sub		B, DB	3	Signal		Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy	0.76 Ám	30 Áin	2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 5-1393480-5	Receptacle, Female Sockets	D-Sub		DE, E	1	Signal	9	Housing/Shell (Unthreaded)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy			2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 1-1393480-7	Receptacle, Female Sockets	D-Sub		DE, E	1	Signal	9	Housing/Shell (Unthreaded)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 7-1393480-5	Male Pins, Plug	D-Sub	Board Lock, Grounding Indents			Signal	15	Housing/Shell (M3)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy			2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray	2
TE Connectivity AMP Connectors 4-1393480-2	Male Pins, Plug	D-Sub	Grounding Indents, Mounting Brackets	B, DB	3	Signal		Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 8-1393480-6	Male Pins, Plug	D-Sub	Board Lock, Ground Strap, Grounding Indents			Signal	15	Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Phosphor Bronze	0.76 Ám	30 Áin	2.2 A	Polybutylene Terephthalate (PBT), Polyester	Black	2
TE Connectivity AMP Connectors 1-1393480-9	Receptacle, Female Sockets	D-Sub		B, DB	3	Signal		Housing/Shell (Unthreaded)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 8-1393480-1	Receptacle, Female Sockets	D-Sub		DE, E	1	Signal	9	Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy			2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 4-1393480-1	Male Pins, Plug	D-Sub	Grounding Indents, Mounting Brackets			Signal	15	Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray	2
