8-1393480-1

Active

TE Connectivity AMP Connectors

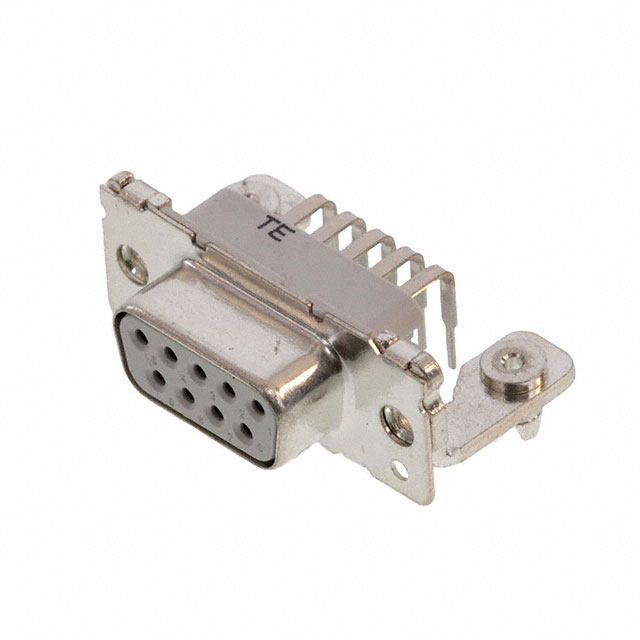

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8-1393480-1

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8-1393480-1	1393480 Series

Backset Spacing	9.43 mm	9.43 mm
Backset Spacing	0.371 in	0.371 in
Color	Gray	Gray, Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	-	0.51 - 0.76 Ám
Contact Finish Thickness	-	20 - 30 Áin
Contact Material	Copper Alloy	Copper Alloy, Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	2.2 A	2.2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester	Polybutylene Terephthalate (PBT), Polyester
Features	-	Grounding Indents, Board Lock, Mounting Brackets, Ground Strap
Flange Feature	Housing/Shell (4-40)	Housing/Shell (M3), Housing/Shell (4-40), Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9 - 15
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout [custom]	DE, E	DE, E, DB, B
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder

1393480 Series

CONN D-SUB PLUG 9POS R/A SLDR

Part	Connector Type	Connector Style	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Number of Positions	Flange Feature	Number of Rows	Mounting Type	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Backset Spacing	Backset Spacing	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Dielectric Material	Color	Shell Size, Connector Layout
TE Connectivity AMP Connectors 3-1393480-2	Male Pins, Plug	D-Sub	Grounding Indents	DE, E	1	Signal	9	Housing/Shell (M3)	2	Through Hole, Right Angle	Solder
TE Connectivity AMP Connectors 8-1393480-3	Receptacle, Female Sockets	D-Sub		B, DB	3	Signal		Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy	0.76 Ám	30 Áin	2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 5-1393480-5	Receptacle, Female Sockets	D-Sub		DE, E	1	Signal	9	Housing/Shell (Unthreaded)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy			2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 1-1393480-7	Receptacle, Female Sockets	D-Sub		DE, E	1	Signal	9	Housing/Shell (Unthreaded)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 7-1393480-5	Male Pins, Plug	D-Sub	Board Lock, Grounding Indents			Signal	15	Housing/Shell (M3)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy			2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray	2
TE Connectivity AMP Connectors 4-1393480-2	Male Pins, Plug	D-Sub	Grounding Indents, Mounting Brackets	B, DB	3	Signal		Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 8-1393480-6	Male Pins, Plug	D-Sub	Board Lock, Ground Strap, Grounding Indents			Signal	15	Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Phosphor Bronze	0.76 Ám	30 Áin	2.2 A	Polybutylene Terephthalate (PBT), Polyester	Black	2
TE Connectivity AMP Connectors 1-1393480-9	Receptacle, Female Sockets	D-Sub		B, DB	3	Signal		Housing/Shell (Unthreaded)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 8-1393480-1	Receptacle, Female Sockets	D-Sub		DE, E	1	Signal	9	Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold	-55 °C	125 °C	UL94 V-0	9.43 mm	0.371 in	Copper Alloy			2.2 A	Polybutylene Terephthalate (PBT), Polyester	Gray
TE Connectivity AMP Connectors 4-1393480-1	Male Pins, Plug	D-Sub	Grounding Indents, Mounting Brackets			Signal	15	Housing/Shell (4-40)	2	Through Hole, Right Angle	Solder	Gold			UL94 V-0	9.43 mm	0.371 in	Copper Alloy				Polybutylene Terephthalate (PBT), Polyester	Gray	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.19
		10	$ 4.30
		25	$ 3.99
		50	$ 3.99

Description

General part information

1393480 Series

9 Position D-Sub Receptacle, Female Sockets Connector
