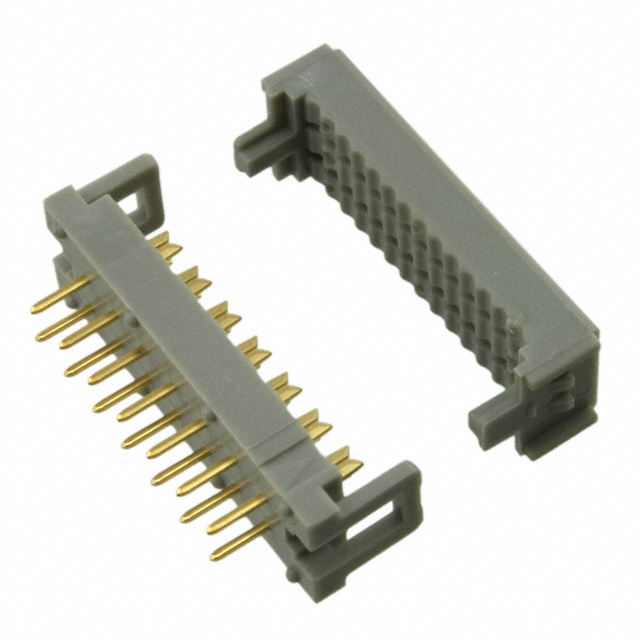

7814-0000PR

Active

3M (TC)

IDC CONNECTOR, BOARD IN CONNECTOR, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

7814-0000PR

Active

3M (TC)

IDC CONNECTOR, BOARD IN CONNECTOR, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7814-0000PR

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Gray
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG, Solid or Stranded, 30 AWG, Solid, 26 AWG, Stranded

7814 Series

Part	Number of Positions	Connector Type	Number of Positions Loaded	Features	Board-Side Pitch	Board-Side Pitch	Wire Gauge	Mounting Type	Contact Finish Thickness	Cable Termination	Cable Pitch	Cable Pitch	Contact Finish	Row Spacing [x]	Row Spacing	Number of Rows	Color
3M (TC) 7814-0006PR	14	DIP Header Ribbon Cable	All	Feed Through	0.1 in	2.54 mm	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	Through Hole	Flash	IDC	1.27 mm	0.05 in	Gold	0.1 in	2.54 mm	2	Gray
3M (TC) 7814-0000PR	14	DIP Header Ribbon Cable	All	Feed Through	0.1 in	2.54 mm	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	Through Hole	Flash	IDC	1.27 mm	0.05 in	Gold	0.1 in	2.54 mm	2	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.32
		10	$ 3.92
		25	$ 3.72
		50	$ 3.63
		100	$ 3.46
		300	$ 3.02
		500	$ 2.94
		1000	$ 2.51
		2500	$ 2.33
Newark	Each	200	$ 2.73
		500	$ 2.58
		1000	$ 2.53

Description

General part information

7814 Series

The 78XX series PCB Header with beryllium copper contacts and a glass filled polyester insulator. It feature 7.3mm terminated height for applications requiring low-profile off the board. It fits standard 0.100x0.100-inch header layout.
