7814-0006PR

Obsolete

3M (TC)

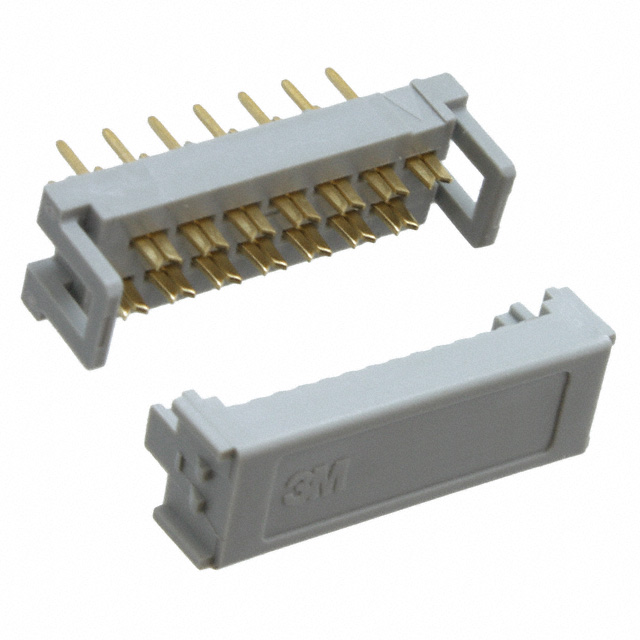

CONN DIP HDR IDC 14P VERT

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN DIP HDR IDC 14P VERT

Technical Specifications

Parameters and characteristics for this part

Specification	7814-0006PR

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Gray
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG, Solid or Stranded, 30 AWG, Solid, 26 AWG, Stranded

Part	Number of Positions	Connector Type	Number of Positions Loaded	Features	Board-Side Pitch	Board-Side Pitch	Wire Gauge	Mounting Type	Contact Finish Thickness	Cable Termination	Cable Pitch	Cable Pitch	Contact Finish	Row Spacing [x]	Row Spacing	Number of Rows	Color
3M (TC) 7814-0006PR	14	DIP Header Ribbon Cable	All	Feed Through	0.1 in	2.54 mm	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	Through Hole	Flash	IDC	1.27 mm	0.05 in	Gold	0.1 in	2.54 mm	2	Gray
3M (TC) 7814-0000PR	14	DIP Header Ribbon Cable	All	Feed Through	0.1 in	2.54 mm	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	Through Hole	Flash	IDC	1.27 mm	0.05 in	Gold	0.1 in	2.54 mm	2	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole
