857-042-557-103

Active

EDAC Inc.

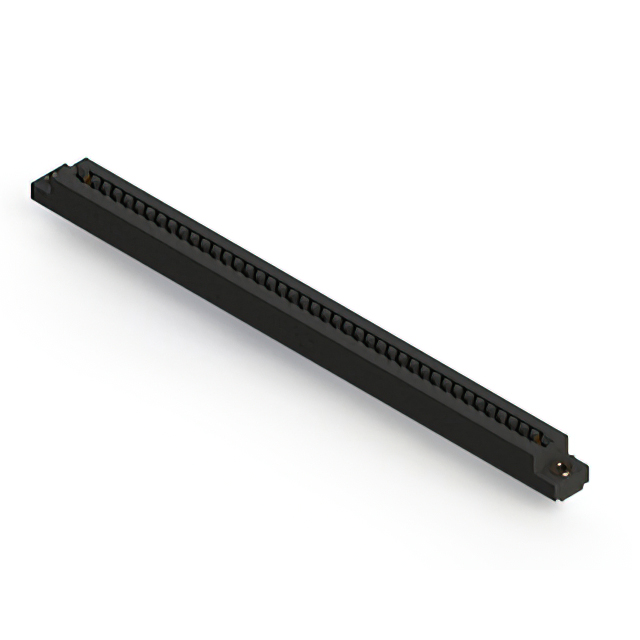

CARD EDGE CONNECTOR, 44 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-042-557-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, 44 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-042-557-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

857-042 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Card Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Positions/Bay/Row [custom]	Contact Finish	Number of Positions	Material - Insulation	Termination	Read Out	Mounting Type	Contact Material	Contact Type	Color	Number of Rows	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 857-042-459-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Tin	42	Polyphenylene Sulfide (PPS)	Solder	Single	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	1	1
EDAC Inc. 857-042-553-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	84	Polyphenylene Sulfide (PPS)	Solder	Dual	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	2	1	3.96 mm	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 857-042-541-108	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	84	Polyphenylene Sulfide (PPS)	Wire Wrap	Dual	Through Hole	Copper Alloy	Semi Bellows	Black	2	1			10 Áin	0.25 Ám
EDAC Inc. 857-042-505-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	42	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	Single	Through Hole	Copper Alloy	Semi Bellows	Black	1	1	2.95 mm	0.116 in	10 Áin	0.25 Ám
EDAC Inc. 857-042-456-208	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female		Tin	42	Polyphenylene Sulfide (PPS)	Solder	Dual	Board Edge Straddle Mount	Copper Alloy	Semi Bellows	Black	2	2					Card Extender
EDAC Inc. 857-042-427-101	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Tin	42	Polyphenylene Sulfide (PPS)	Solder	Single	Through Hole	Copper Alloy	Semi Bellows	Black	1	1
EDAC Inc. 857-042-547-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	42	Polyphenylene Sulfide (PPS)	Wire Wrap	Single	Through Hole	Copper Alloy	Semi Bellows	Black	1	1	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 857-042-557-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	84	Polyphenylene Sulfide (PPS)	Solder	Dual	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	2	1	2.95 mm	0.116 in	10 Áin	0.25 Ám
EDAC Inc. 857-042-440-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female		Tin	42	Polyphenylene Sulfide (PPS)	Wire Wrap	Dual	Through Hole	Copper Alloy	Semi Bellows	Black	2	2	2.95 mm	0.116 in
EDAC Inc. 857-042-559-108	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	42	Polyphenylene Sulfide (PPS)	Solder	Single	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	1	1			10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 275.39
Newark	Each	1	$ 369.95
		100	$ 255.41
		250	$ 202.36
		500	$ 190.91
		1000	$ 162.25

Description

General part information

857-042 Series

84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Documents

Technical documentation and resources
