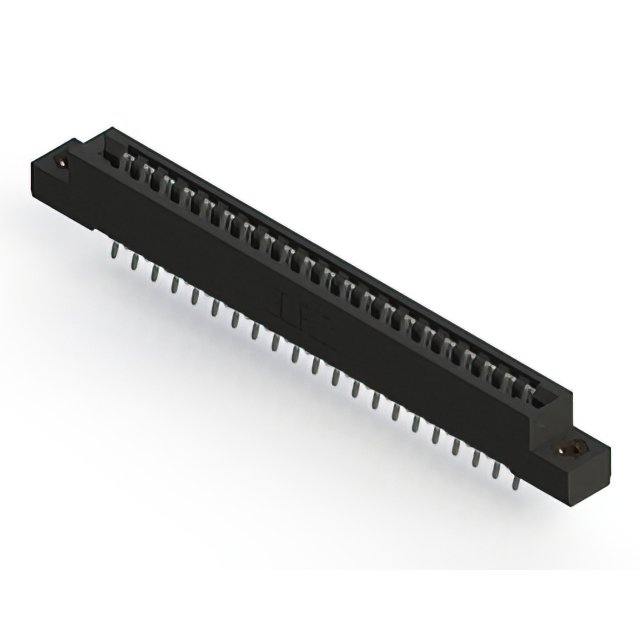

857-042-456-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-042-456-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 42POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-042-456-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-042 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Card Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Positions/Bay/Row [custom]	Contact Finish	Number of Positions	Material - Insulation	Termination	Read Out	Mounting Type	Contact Material	Contact Type	Color	Number of Rows	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 857-042-459-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Tin	42	Polyphenylene Sulfide (PPS)	Solder	Single	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	1	1
EDAC Inc. 857-042-553-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	84	Polyphenylene Sulfide (PPS)	Solder	Dual	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	2	1	3.96 mm	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 857-042-541-108	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	84	Polyphenylene Sulfide (PPS)	Wire Wrap	Dual	Through Hole	Copper Alloy	Semi Bellows	Black	2	1			10 Áin	0.25 Ám
EDAC Inc. 857-042-505-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	42	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	Single	Through Hole	Copper Alloy	Semi Bellows	Black	1	1	2.95 mm	0.116 in	10 Áin	0.25 Ám
EDAC Inc. 857-042-456-208	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female		Tin	42	Polyphenylene Sulfide (PPS)	Solder	Dual	Board Edge Straddle Mount	Copper Alloy	Semi Bellows	Black	2	2					Card Extender
EDAC Inc. 857-042-427-101	1.37 mm	0.054 "	1.78 mm	0.07 in		Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Tin	42	Polyphenylene Sulfide (PPS)	Solder	Single	Through Hole	Copper Alloy	Semi Bellows	Black	1	1
EDAC Inc. 857-042-547-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	42	Polyphenylene Sulfide (PPS)	Wire Wrap	Single	Through Hole	Copper Alloy	Semi Bellows	Black	1	1	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 857-042-557-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	84	Polyphenylene Sulfide (PPS)	Solder	Dual	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	2	1	2.95 mm	0.116 in	10 Áin	0.25 Ám
EDAC Inc. 857-042-440-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female		Tin	42	Polyphenylene Sulfide (PPS)	Wire Wrap	Dual	Through Hole	Copper Alloy	Semi Bellows	Black	2	2	2.95 mm	0.116 in
EDAC Inc. 857-042-559-108	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Single Edge	0.156 in	3.96 mm	125 °C	-40 °C	Female	42	Gold	42	Polyphenylene Sulfide (PPS)	Solder	Single	Through Hole Right Angle	Copper Alloy	Semi Bellows	Black	1	1			10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 93.61
Newark	Each	1	$ 134.59
		100	$ 92.05
		250	$ 79.09
		500	$ 66.41
		1000	$ 49.63

Description

General part information

857-042 Series

42 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
