TMB-E4F2-1L1

Active

CarlisleIT

2.4(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

2.4(F)2-H,EL,FIELDREP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 38.50

General part information

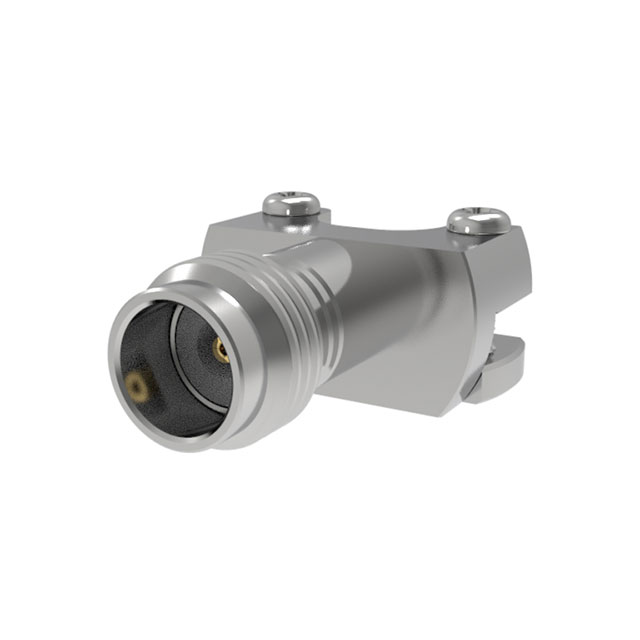

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TMB-E4F2-1L1	TMB-E4 Series

Body Finish	-	Gold, White Bronze
Body Material	Stainless Steel	Brass, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	OS-50	OS-50
Connector Style	2.4 mm	2.4 mm
Connector Style	APC-2.4	APC-2.4
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Compression	Solder, Compression
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Features	Field Replaceable, For Hermetically Sealed Pin	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	50 GHz	50 GHz
Housing Color	Silver	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.2 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 ░C
Shield Termination	Screw	Solder, Screw
Voltage Rating	400 V	400 V

2.4(F)STR,EL,SOLDER

Part	Voltage Rating	Connector Type	Mating Cycles	Center Contact Plating	Number of Ports	Mounting Type	Frequency - Max [Max]	Shield Termination	Connector Style	Connector Style	Connector Style	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Center Contact Material	Body Finish	Impedance	Body Material	Dielectric Material	Features
CarlisleIT TMB-E4FS-1S1	400 V	Female Socket, Jack	500	Gold	1	Board Edge, End Launch	50 GHz	Solder	OS-50	2.4 mm	APC-2.4	0.6 dB	-65 ░C	165 °C	Solder	Gold	Beryllium Copper	Gold	50 Ohms	Brass
CarlisleIT TMB-E4FS-1ST	400 V	Female Socket, Jack	500		1	Board Edge, End Launch	50 GHz	Solder	OS-50	2.4 mm	APC-2.4	0.42 dB	-55 °C	85 °C	Solder	Silver	Beryllium Copper	White Bronze	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
CarlisleIT TMB-E4F2-1L1	400 V	Female Socket, Jack	500	Gold	1	Board Edge, End Launch	50 GHz	Screw	OS-50	2.4 mm	APC-2.4	0.2 dB	-65 ░C	165 °C	Compression	Silver	Beryllium Copper		50 Ohms	Stainless Steel		Field Replaceable, For Hermetically Sealed Pin
