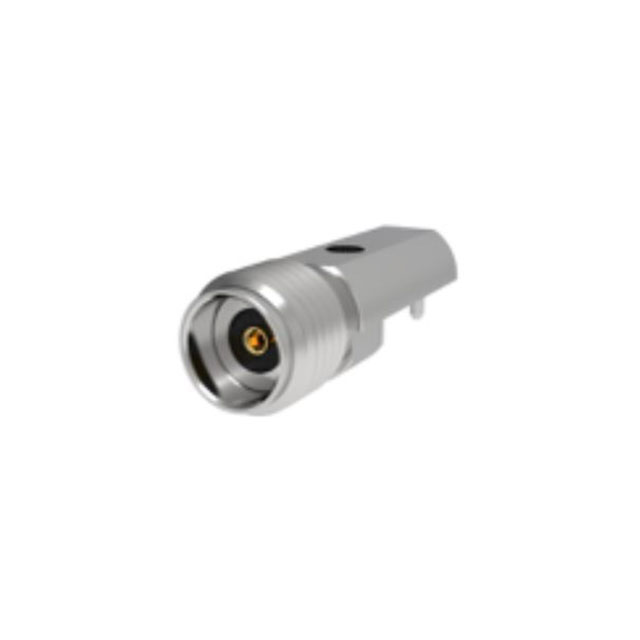

TMB-E4FS-1ST

Active

CarlisleIT

2.4(F)STR,EL,SMT,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

2.4(F)STR,EL,SMT,SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMB-E4FS-1ST	TMB-E4 Series

Body Finish	White Bronze	Gold, White Bronze
Body Material	Brass	Brass, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	-	Gold
Connector Style	OS-50	OS-50
Connector Style	2.4 mm	2.4 mm
Connector Style	APC-2.4	APC-2.4
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder, Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	-	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	50 GHz	50 GHz
Housing Color	Silver	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.42 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -55 ░C
Shield Termination	Solder	Solder, Screw
Voltage Rating	400 V	400 V

2.4(F)STR,EL,SOLDER

Part	Voltage Rating	Connector Type	Mating Cycles	Center Contact Plating	Number of Ports	Mounting Type	Frequency - Max [Max]	Shield Termination	Connector Style	Connector Style	Connector Style	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Center Contact Material	Body Finish	Impedance	Body Material	Dielectric Material	Features
CarlisleIT TMB-E4FS-1S1	400 V	Female Socket, Jack	500	Gold	1	Board Edge, End Launch	50 GHz	Solder	OS-50	2.4 mm	APC-2.4	0.6 dB	-65 ░C	165 °C	Solder	Gold	Beryllium Copper	Gold	50 Ohms	Brass
CarlisleIT TMB-E4FS-1ST	400 V	Female Socket, Jack	500		1	Board Edge, End Launch	50 GHz	Solder	OS-50	2.4 mm	APC-2.4	0.42 dB	-55 °C	85 °C	Solder	Silver	Beryllium Copper	White Bronze	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)
CarlisleIT TMB-E4F2-1L1	400 V	Female Socket, Jack	500	Gold	1	Board Edge, End Launch	50 GHz	Screw	OS-50	2.4 mm	APC-2.4	0.2 dB	-65 ░C	165 °C	Compression	Silver	Beryllium Copper		50 Ohms	Stainless Steel		Field Replaceable, For Hermetically Sealed Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
