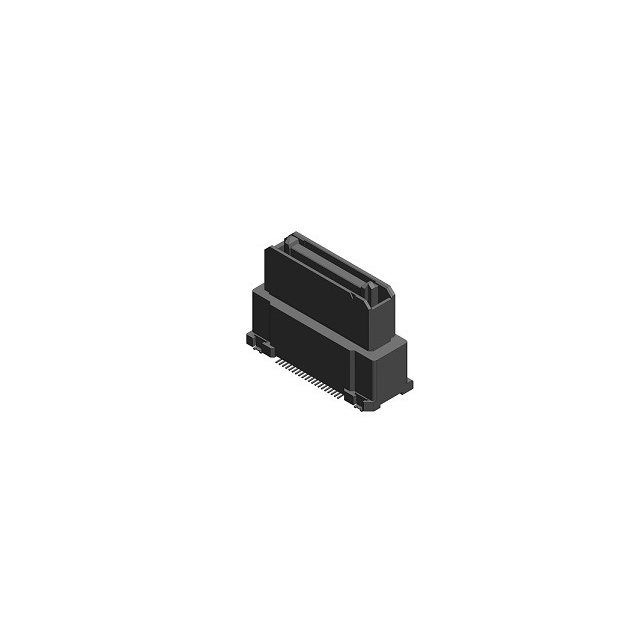

MA01F Series

Part	Number of Positions	Pitch	Mated Stacking Height	Height Above Board	Features	Connector Type	Contact Finish Thickness	Mounting Type	Number of Rows	Contact Finish	Mated Stacking Height Options
JAE Electronics MA01F060VACBR150	60	0.025 in	20 mm	0.72 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F090VABBR300	90	0.025 in	14 mm	0.484 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F140VACBR150	140	0.025 in		0.72 in	Board Guide Solder Retention	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold	20mm 22mm 30mm
JAE Electronics MA01F060VABBR300	60	0.025 in	14 mm	0.484 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F040VABBR300	40	0.025 in		0.484 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F090VACBR150	90	0.025 in	30 mm	0.72 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F100VABBR300	100	0.025 in	14 mm	0.484 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F080VACBR150	80	0.025 in	20 mm	0.72 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F100VACBR150	100	0.025 in	30 mm	0.72 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
JAE Electronics MA01F040VACBR150	40	0.025 in		0.72 in	Board Guide	Center Strip Contacts Plug	4 µin	Surface Mount	2	Gold
