MA01F140VACBR150

Active

JAE Electronics

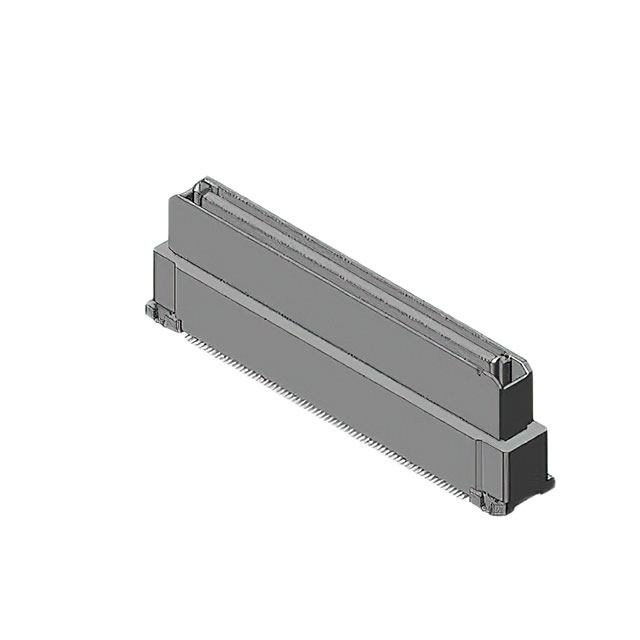

CONN FLOATING SIDE STR 140 POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN FLOATING SIDE STR 140 POS

Technical Specifications

Parameters and characteristics for this part

Specification	MA01F140VACBR150

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	18.3 mm
Height Above Board	0.72 "
Mated Stacking Heights	30 mm, 22 mm, 20 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Number of Positions	Height Above Board	Height Above Board	Features	Contact Finish	Mounting Type	Mated Stacking Heights	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
JAE Electronics MA01F060VACBR150	60	18.3 mm	0.72 "	Board Guide	Gold	Surface Mount	20 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F140VACBR150	140	18.3 mm	0.72 "	Board Guide Solder Retention	Gold	Surface Mount	20 mm 22 mm 30 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F060VABBR300	60			Board Guide	Gold	Surface Mount	14 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F090VACBR150	90	18.3 mm	0.72 "	Board Guide	Gold	Surface Mount	30 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F100VABBR300	100			Board Guide	Gold	Surface Mount	14 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F080VACBR150	80	18.3 mm	0.72 "	Board Guide	Gold	Surface Mount	20 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F100VACBR150	100	18.3 mm	0.72 "	Board Guide	Gold	Surface Mount	30 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F040VACBR150	40	18.3 mm	0.72 "	Board Guide	Gold	Surface Mount		2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F120VACBR150	120	18.3 mm	0.72 "	Board Guide Solder Retention	Gold	Surface Mount	20 mm 22 mm 30 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám
JAE Electronics MA01F080VABBR300	80			Board Guide	Gold	Surface Mount	14 mm	2	0.64 mm	0.025 in	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

140 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Technical documentation and resources
