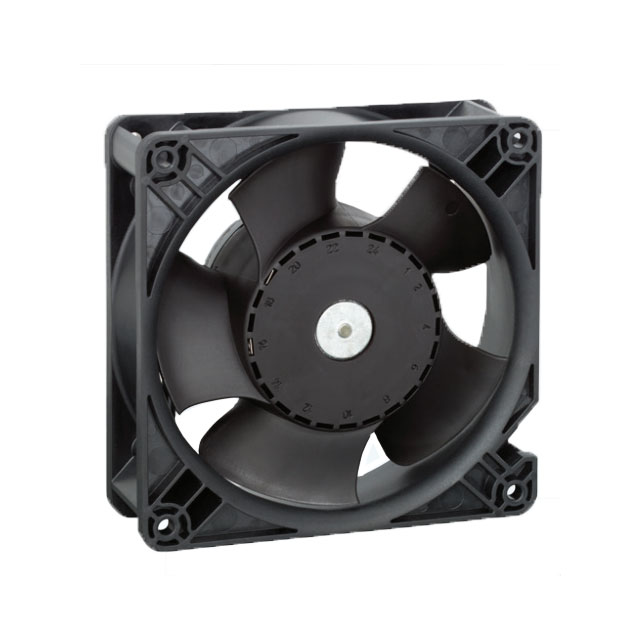

Specification	DV4114/2N

Air Flow	165 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Nylon, Polyamide, PA, Fiberglass Reinforced
Material - Frame	Fiberglass Reinforced, Polybutylene Terephthalate (PBT)
Noise	61 dB
Operating Temperature (Max)	149 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	20.5 W
RPM	6000 RPM
Size / Dimension Height	119 mm
Size / Dimension Length	119 mm
Size / Dimension Shape	Square
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	30 VDC
Voltage Range (Min)	16 VDC
Width	38 mm

DV4114 Series

Part	Fan Type	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Bearing Type	Air Flow	Termination Leads Count	Termination Type	Termination	Width	Features	RPM	Noise	Power (Watts)	Voltage - Rated	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Material - Blade	Lifetime	Weight
ebm-papst Inc. DV4114/2N	Tubeaxial	CE CSA UL VDE	-4 °F	149 °F	Ball	165 CFM	3	Wire Leads	3 Wire Leads	38 mm	Speed Sensor (Tach)	6000 RPM	61 dB	20.5 W	24 VAC	119 mm	Square	119 mm	30 VDC	16 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Fiberglass Reinforced Nylon PA Polyamide	70000 Hrs
ebm-papst Inc. DV4114N	Tubeaxial	CE CSA UL VDE	-4 °F	149 °F	Ball	164.9 CFM	2 leads	Wire Leads	2 Wire Leads	38 mm	Locked Rotor Protection	6000 RPM	61 dB	20.5 W	24 VAC	119 mm	Square	119 mm	30 VDC	16 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Fiberglass Reinforced Nylon PA Polyamide	70000 Hrs	0.827 lb
