DV4114N

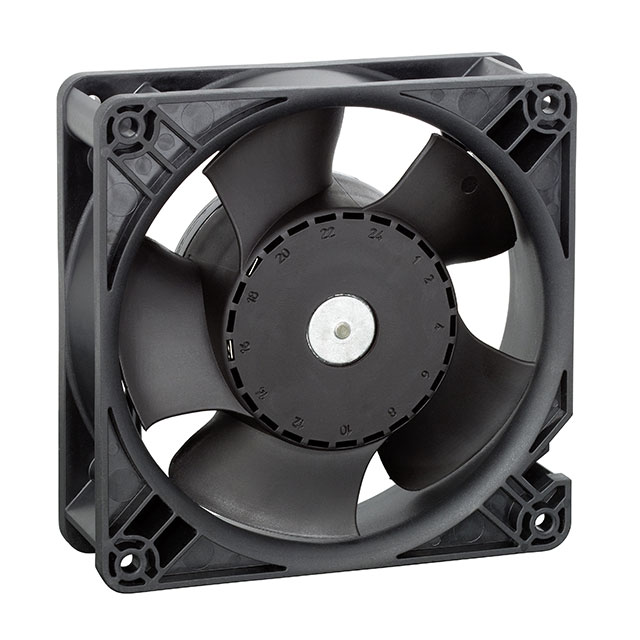

ActiveDC AXIAL FAN, 24 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 164.7 CFM
DV4114N
ActiveDC AXIAL FAN, 24 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 164.7 CFM
Description
General part information
DV4114 Series
The DV4114N is a 24VDC Diagonal Compact Fan with speed signal, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic (PBTP) housing, fibreglass-reinforced plastic (PA) impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow with single strands 22AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
Technical Specifications
Parameters and characteristics for this part
| Specification | DV4114N |
|---|---|
| Air Flow | 164.9 CFM |
| Approval Agency | CSA, UL, CE, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Lifetime | 70000 Hrs |
| Material - Blade | Nylon, Polyamide, PA, Fiberglass Reinforced |
| Material - Frame | Fiberglass Reinforced, Polybutylene Terephthalate (PBT) |
| Noise | 61 dB |
| Operating Temperature (Max) | 149 °F |
| Operating Temperature (Min) | -4 °F |
| Power (Watts) | 20.5 W |
| RPM | 6000 RPM |
| Size / Dimension Height | 119 mm |
| Size / Dimension Length | 119 mm |
| Size / Dimension Shape | Square |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 30 VDC |
| Voltage Range (Min) | 16 VDC |
| Weight | 0.827 lb |
| Width | 38 mm |
