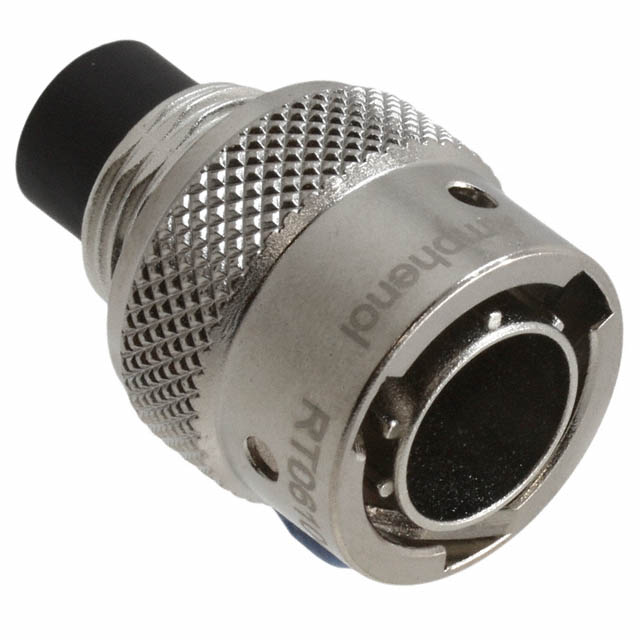

RT06104PNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 4POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT06104PNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 4POS INLINE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT06104PNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-4
Shielding	Shielded
Type	For Male Pins

RT06104 Series

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert	Features	Ingress Protection	Primary Material	Housing Color	Insert Material	Note	Material Flammability Rating	Mounting Type	Type	Connector Type	Shielding	Shell Material	Contact Type	Fastening Type	Contact Shape	Shell Finish	Contact Size	Contact Material	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Termination	Contact Finish Thickness - Mating	Backshell Material, Plating	Applications	Color	Current Rating (Amps)
Amphenol Sine Systems Corp RT06104SNHEC03	N	125 °C	-40 °C	4	10-4	Coupling Nut	IP67 - Dust Tight Waterproof	Metal	Silver	Thermoplastic	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	For Female Sockets	Plug Housing	Shielded	Zinc Alloy	Crimp	Bayonet Lock	Circular	Nickel	16
Amphenol Sine Systems Corp RT06104PNH03SS-K	N	105 ░C	-40 °C	4	10-4	Backshell Coupling Nut	IP67 IP69K	Metal		Polyamide (PA66) Nylon 6/6		UL94 V-0	Free Hanging (In-Line)		Male Pins Plug	Shielded	Zinc Die Cast		Bayonet Lock		Nickel		Brass	Gold	0.118 in	6.5 mm	3 mm	0.256 in	250 VAC	Crimp	Flash	Nickel Zinc Die Cast	Aerospace Automation Industrial Telecom Transportation	Silver	13 A
Amphenol Sine Systems Corp RT06104PNH-K	N	105 ░C	-40 °C	4	10-4		IP67 - Dust Tight Waterproof	Metal					Free Hanging (In-Line)		Male Pins Plug		Zinc Die Cast		Bayonet Lock		Nickel			Gold					250 VAC	Crimp	Flash			Silver	13 A
Amphenol Sine Systems Corp RT06104SNH03SS-K	N	105 ░C	-40 °C	4	10-4	Backshell Coupling Nut	IP67 IP69K	Metal		Polyamide (PA66) Nylon 6/6		UL94 V-0	Free Hanging (In-Line)		Female Sockets Plug	Shielded	Zinc Die Cast		Bayonet Lock		Nickel		Brass	Gold	0.118 in	6.5 mm	3 mm	0.256 in	250 VAC	Crimp	Flash	Nickel Zinc Die Cast	Aerospace Automation Industrial Telecom Transportation	Silver	13 A
Amphenol Sine Systems Corp RT06104SNHEC	N	105 ░C	-40 °C	4	10-4	Backshell Coupling Nut	IP67 - Dust Tight Waterproof		Silver	Thermoplastic	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	For Female Sockets	Plug Housing	Shielded	Zinc Alloy	Crimp	Bayonet Lock	Circular	Nickel	16
Amphenol Sine Systems Corp RT06104PNH	N	105 ░C	-40 °C	4	10-4	Coupling Nut	IP67 - Dust Tight Waterproof		Silver	Thermoplastic	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	For Male Pins	Plug Housing	Shielded	Zinc Alloy	Crimp	Bayonet Lock	Circular	Nickel	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.19
		10	$ 18.36
		25	$ 17.41
		50	$ 17.15
		200	$ 15.13
		400	$ 14.13
		600	$ 13.82

Description

General part information

RT06104 Series

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
