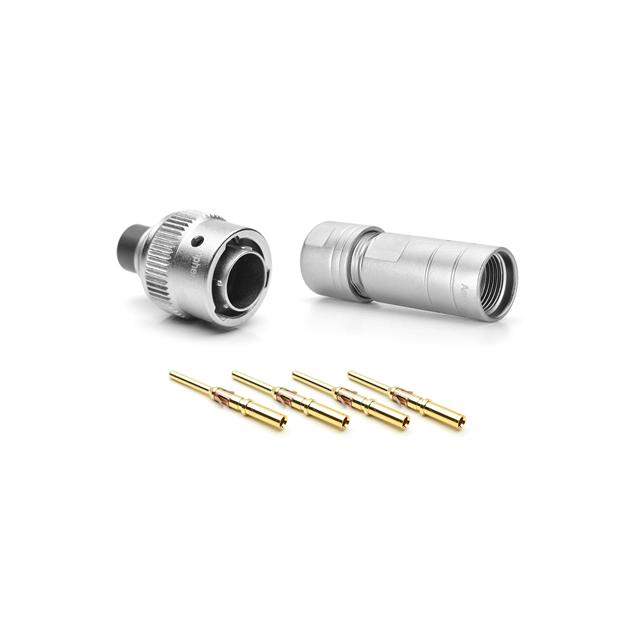

RT06104PNH03SS-K

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate RSSM +1

RT06104PNH03SS-K

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet ecomate RSSM +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT06104PNH03SS-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Backshell Material, Plating	Nickel, Zinc Die Cast
Cable Opening [Max] [custom]	6.5 mm
Cable Opening [Max] [custom]	0.256 in
Cable Opening [Min] [custom]	0.118 in
Cable Opening [Min] [custom]	3 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP69K, IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	10-4
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VAC

RT06104 Series

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert	Features	Ingress Protection	Primary Material	Housing Color	Insert Material	Note	Material Flammability Rating	Mounting Type	Type	Connector Type	Shielding	Shell Material	Contact Type	Fastening Type	Contact Shape	Shell Finish	Contact Size	Contact Material	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Voltage Rating	Termination	Contact Finish Thickness - Mating	Backshell Material, Plating	Applications	Color	Current Rating (Amps)
Amphenol Sine Systems Corp RT06104SNHEC03	N	125 °C	-40 °C	4	10-4	Coupling Nut	IP67 - Dust Tight Waterproof	Metal	Silver	Thermoplastic	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	For Female Sockets	Plug Housing	Shielded	Zinc Alloy	Crimp	Bayonet Lock	Circular	Nickel	16
Amphenol Sine Systems Corp RT06104PNH03SS-K	N	105 ░C	-40 °C	4	10-4	Backshell Coupling Nut	IP67 IP69K	Metal		Polyamide (PA66) Nylon 6/6		UL94 V-0	Free Hanging (In-Line)		Male Pins Plug	Shielded	Zinc Die Cast		Bayonet Lock		Nickel		Brass	Gold	0.118 in	6.5 mm	3 mm	0.256 in	250 VAC	Crimp	Flash	Nickel Zinc Die Cast	Aerospace Automation Industrial Telecom Transportation	Silver	13 A
Amphenol Sine Systems Corp RT06104PNH-K	N	105 ░C	-40 °C	4	10-4		IP67 - Dust Tight Waterproof	Metal					Free Hanging (In-Line)		Male Pins Plug		Zinc Die Cast		Bayonet Lock		Nickel			Gold					250 VAC	Crimp	Flash			Silver	13 A
Amphenol Sine Systems Corp RT06104SNH03SS-K	N	105 ░C	-40 °C	4	10-4	Backshell Coupling Nut	IP67 IP69K	Metal		Polyamide (PA66) Nylon 6/6		UL94 V-0	Free Hanging (In-Line)		Female Sockets Plug	Shielded	Zinc Die Cast		Bayonet Lock		Nickel		Brass	Gold	0.118 in	6.5 mm	3 mm	0.256 in	250 VAC	Crimp	Flash	Nickel Zinc Die Cast	Aerospace Automation Industrial Telecom Transportation	Silver	13 A
Amphenol Sine Systems Corp RT06104SNHEC	N	105 ░C	-40 °C	4	10-4	Backshell Coupling Nut	IP67 - Dust Tight Waterproof		Silver	Thermoplastic	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	For Female Sockets	Plug Housing	Shielded	Zinc Alloy	Crimp	Bayonet Lock	Circular	Nickel	16
Amphenol Sine Systems Corp RT06104PNH	N	105 ░C	-40 °C	4	10-4	Coupling Nut	IP67 - Dust Tight Waterproof		Silver	Thermoplastic	Contacts Not Included	UL94 V-0	Free Hanging (In-Line)	For Male Pins	Plug Housing	Shielded	Zinc Alloy	Crimp	Bayonet Lock	Circular	Nickel	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.92
		10	$ 27.08
		25	$ 25.91
		50	$ 25.07
		100	$ 24.24
		250	$ 22.90

Description

General part information

RT06104 Series

4 Position Circular Connector Plug, Male Pins Crimp
