3542-2
ActivePomona Electronics
TEST CONNECTOR, TIP JACK, 2MM STANDARD TIP PLUG, 1.5 KV, 5 A, RED
Deep-Dive with AI
Search across all available documentation for this part.
3542-2
ActivePomona Electronics
TEST CONNECTOR, TIP JACK, 2MM STANDARD TIP PLUG, 1.5 KV, 5 A, RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3542-2 |
|---|---|
| Body Material | Polycarbonate (PC) |
| Color | Red |
| Contact Finish | Gold |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Operating Temperature | 115 °C |
| Plug/Mating Plug Diameter | Standard Tip |
| Termination | Turret, Threaded |
| Type | Tip Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3542 Series

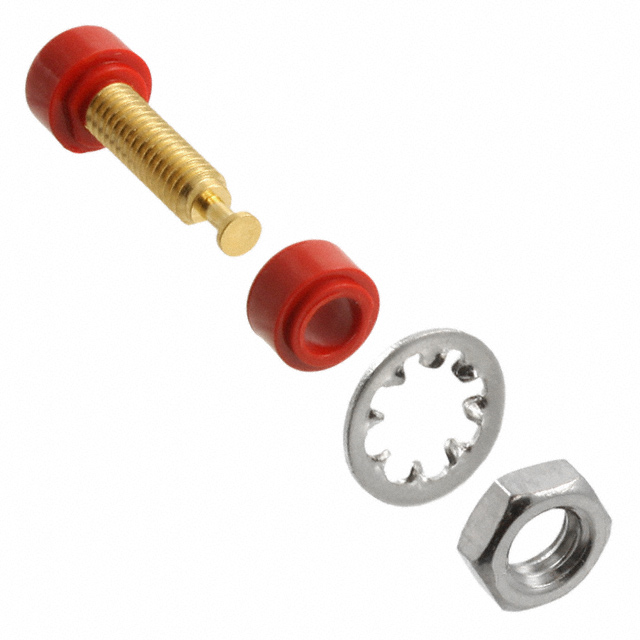

The 3542-2 is an insulated pin Tip Jack accepts 0.08 pin tip plugs. The pin polycarbonate molded to pin tip jack body insulation, nickel-plated steel No.8 internal tooth lock washer, nickel-plated brass hex nut, gold-plated brass pin tip jack body. Mounts in panels up to 0.25-inch thick.
