3542-9

Active

Pomona Electronics

CONN TIP JACK THRD WHITE

Search across all available documentation for this part.

Active

Pomona Electronics

CONN TIP JACK THRD WHITE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature	Contact Material	Insulation	Gender	Type	Color	Termination	Body Material	Contact Finish	Plug/Mating Plug Diameter
Pomona Electronics 3542-0#	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Black	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-6	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Blue	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-4	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Yellow	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-5	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Green	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-3	115 °C	Brass	Mating End Insulated	Female	Tip Jack		Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-5#	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Green	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-0	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Black	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-2	115 °C	Brass	Mating End Insulated	Female	Tip Jack	Red	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip
Pomona Electronics 3542-9	115 °C	Brass	Mating End Insulated	Female	Tip Jack	White	Threaded Turret	Polycarbonate (PC)	Gold	Standard Tip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

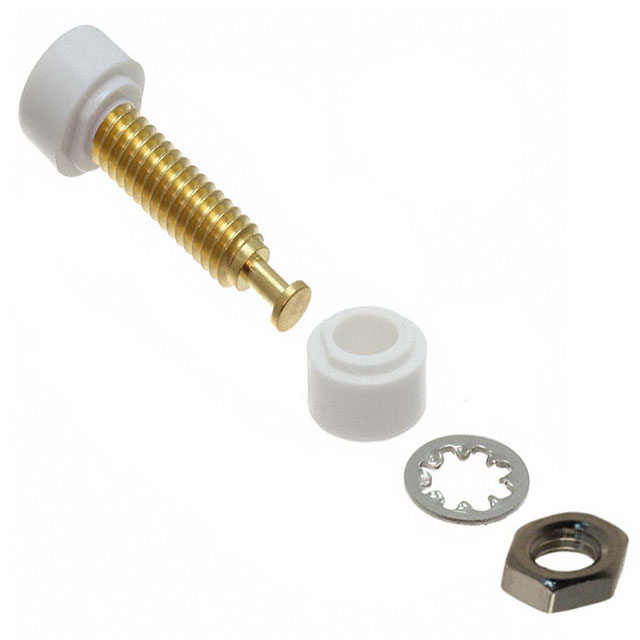

Tip Jack Connector Standard Tip Threaded and Turret White
