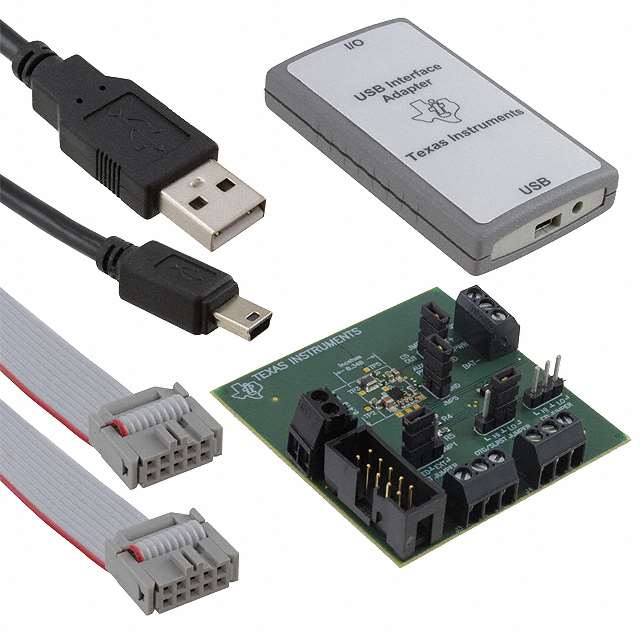

BQ24150AEVM
ActiveEVAL MODULE FOR BQ24150A
Deep-Dive with AI
Search across all available documentation for this part.
BQ24150AEVM
ActiveEVAL MODULE FOR BQ24150A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24150AEVM | BQ24150 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.44 V |
| Charge Current - Max | - | 1.25 A |
| Current - Charging | - | Constant, Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 20-UFBGA, DSBGA |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer, Voltage |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24150A | BQ24150, BQ24150A |
| Voltage - Supply (Max) | - | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 105.70 | |
BQ24150 Series
I2C 1cell 1.25A Buck battery charger with OTG and 2KV HBM
| Part | Supplied Contents | Secondary Attributes | Embedded | Primary Attributes | Utilized IC / Part | Type | Function | Charge Current - Max [Max] | Mounting Type | Package / Case | Supplier Device Package | Number of Cells | Battery Pack Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Fault Protection | Voltage - Supply (Max) [Max] | Current - Charging | Programmable Features | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24150EVM | Board(s) | I2C Interface(s) | Li-Ion / Li-Pol (1 Cell) | BQ24150 | Power Management | Battery Charger | |||||||||||||||
Texas Instruments BQ24150AEVM | Board(s) | I2C Interface(s) | Li-Ion / Li-Pol (1 Cell) | BQ24150A | Power Management | Battery Charger | |||||||||||||||
Texas Instruments BQ24150YFFR | 1.25 A | Surface Mount | 20-UFBGA, DSBGA | 20-DSBGA | 1 | 4.44 V | 85 °C | -40 °C | Lithium Ion/Polymer | Over Temperature, Over Voltage | 6 V | Constant | Current, Timer, Voltage | I2C | |||||||
Texas Instruments BQ24150YFFT | 1.25 A | Surface Mount | 20-UFBGA, DSBGA | 20-DSBGA | 1 | 4.44 V | 85 °C | -40 °C | Lithium Ion/Polymer | Over Temperature, Over Voltage | 6 V | Constant | Current, Timer, Voltage | I2C | |||||||
Texas Instruments BQ24150AYFFR | 1.25 A | Surface Mount | 20-UFBGA, DSBGA | 20-DSBGA | 1 | 4.44 V | 85 °C | -40 °C | Lithium Ion/Polymer | Over Temperature, Over Voltage | 6 V | Constant - Programmable | Current, Timer, Voltage | I2C | |||||||
Texas Instruments BQ24150AYFFT | 1.25 A | Surface Mount | 20-UFBGA, DSBGA | 20-DSBGA | 1 | 4.44 V | 85 °C | -40 °C | Lithium Ion/Polymer | Over Temperature, Over Voltage | 6 V | Constant - Programmable | Current, Timer, Voltage | I2C |
Description
General part information
BQ24150 Series
The bq24150A/1A is a compact, flexible, high-efficiency, USB-friendly switch-mode charge management device for single-cell Li-ion and Li-polymer batteries used in a wide range of portable applications. The charge parameters can be programmed through an I2C interface. The bq24150A/1A integrates a synchronous PWM controller, power MOSFETs, input current sensing, high-accuracy current and voltage regulation, and charge termination, into a small WCSP package.
The bq24150A/1A charges the battery in three phases: conditioning, constant current and constant voltage. The input current is automatically limited to the value set by the host. Charge is terminated based on user-selectable minimum current level. A safety timer with reset control provides a safety backup for I2C interface. During normal operation, bq24150A/1A automatically restarts the charge cycle if the battery voltage falls below an internal threshold and automatically enters sleep mode or high impedance mode when the input supply is removed. The charge status is reported to the host using the I2C interface.
During the charging process, the bq24150A/1A monitors its junction temperature (TJ) and reduces the charge current once TJincreases to approximately 125°C. To support USB OTG device, bq24150A/1A provides VBUS (approximately 5.05 V) by boosting the battery voltage. The bq24150A/1A is available in 20-pin WCSP package.
