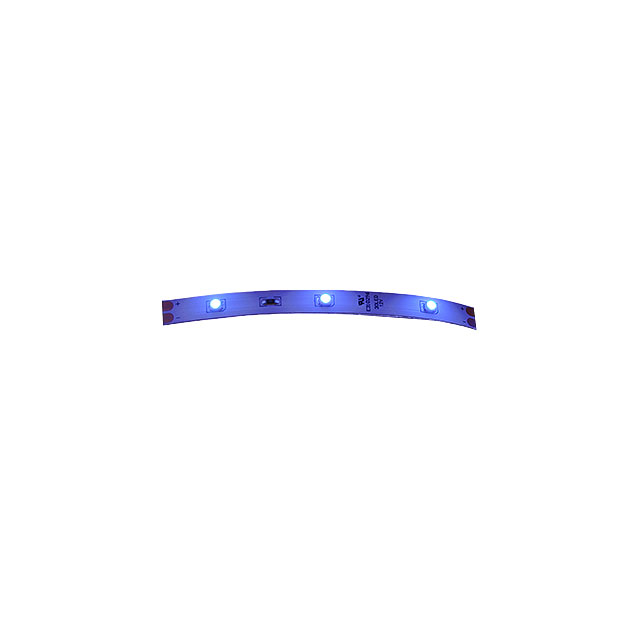

12V-NB-BLU-12M
ActiveInspired LED, LLC
LED ENG BLU 465NM 3LEDS 12M REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12V-NB-BLU-12M
ActiveInspired LED, LLC
LED ENG BLU 465NM 3LEDS 12M REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 12V-NB-BLU-12M | 12V-NB Series |
|---|---|---|
| CCT (K) | - | 6000 K |
| Color | Blue | Green, Blue, Red, Cool, White |
| Configuration | Linear Light Strip, Flexible | Linear Light Strip, Flexible |
| CRI (Color Rendering Index) | - | 85 |
| Height [z] | 1.5 mm | 1.5 - 2.25 mm |
| Lens Type | Flat | Flat |
| Luminous Flux @ Current/Temperature | - | 100 lm |
| Size / Dimension [custom] | 97.03 mm | 97.03 mm |
| Size / Dimension [x] | 12000 mm | 12000 mm |
| Size / Dimension [y] | 8 mm | 8 mm |
| Type | LED Engine | LED Engine |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 12 V | 12 V |
| Wavelength | 465 nm | 465 - 625 nm |
| Wavelength | - | 625nm Red, 565nm Green, 465nm Blue |
12V-NB Series
LED ENG GRN 565NM 3LEDS 12M REEL
| Part | Configuration | Type | Lens Type | Height [z] | Voltage - Forward (Vf) (Typ) | Wavelength | Color | Viewing Angle | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [custom] | Wavelength | CRI (Color Rendering Index) | Luminous Flux @ Current/Temperature | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inspired LED, LLC 12V-NB-GRN-12M | Flexible, Linear Light Strip | LED Engine | Flat | 1.5 mm | 12 V | 565 nm | Green | 120 ° | 12000 mm | 8 mm | 97.03 mm | ||||
Inspired LED, LLC 12V-NB-BLU-12M | Flexible, Linear Light Strip | LED Engine | Flat | 1.5 mm | 12 V | 465 nm | Blue | 120 ° | 12000 mm | 8 mm | 97.03 mm | ||||
Inspired LED, LLC 12V-NB-RED-12M | Flexible, Linear Light Strip | LED Engine | Flat | 1.5 mm | 12 V | 625 nm | Red | 120 ° | 12000 mm | 8 mm | 97.03 mm | ||||
Inspired LED, LLC 12V-NB-RGB-12M | Flexible, Linear Light Strip | LED Engine | Flat | 2.25 mm | 12 V | Blue, Green, Red | 120 ° | 465nm Blue, 565nm Green, 625nm Red | |||||||
Inspired LED, LLC 12V-NB-CW-12M | Flexible, Linear Light Strip | LED Engine | Flat | 1.5 mm | 12 V | Cool, White | 120 ° | 12000 mm | 8 mm | 97.03 mm | 85 | 100 lm | 6000 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| Tape & Reel (TR) | 120 | $ 0.59 | ||
Description
General part information
12V-NB Series
LED Lighting COBs Engines Modules LED Engine - Blue Linear Light Strip, Flexible
