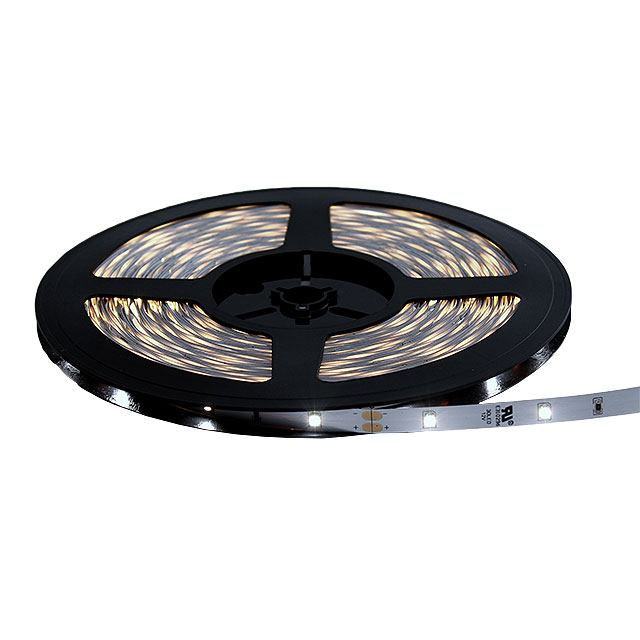

12V-NB-CW-12M

Active

Inspired LED, LLC

LED ENG COOL WHT 6000K 12M REEL

Search across all available documentation for this part.

Active

Inspired LED, LLC

LED ENG COOL WHT 6000K 12M REEL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12V-NB-CW-12M	12V-NB Series

CCT (K)	6000 K	6000 K
Color	Cool, White	Green, Blue, Red, Cool, White
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	85	85
Height [z]	1.5 mm	1.5 - 2.25 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	100 lm	100 lm
Size / Dimension [custom]	97.03 mm	97.03 mm
Size / Dimension [x]	12000 mm	12000 mm
Size / Dimension [y]	8 mm	8 mm
Type	LED Engine	LED Engine
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	12 V	12 V
Wavelength	-	465 - 625 nm
Wavelength	-	625nm Red, 565nm Green, 465nm Blue

LED ENG GRN 565NM 3LEDS 12M REEL

Part	Configuration	Type	Lens Type	Height [z]	Voltage - Forward (Vf) (Typ)	Wavelength	Color	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [custom]	Wavelength	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	CCT (K)
Inspired LED, LLC 12V-NB-GRN-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V	565 nm	Green	120 °	12000 mm	8 mm	97.03 mm
Inspired LED, LLC 12V-NB-BLU-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V	465 nm	Blue	120 °	12000 mm	8 mm	97.03 mm
Inspired LED, LLC 12V-NB-RED-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V	625 nm	Red	120 °	12000 mm	8 mm	97.03 mm
Inspired LED, LLC 12V-NB-RGB-12M	Flexible, Linear Light Strip	LED Engine	Flat	2.25 mm	12 V		Blue, Green, Red	120 °				465nm Blue, 565nm Green, 625nm Red
Inspired LED, LLC 12V-NB-CW-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V		Cool, White	120 °	12000 mm	8 mm	97.03 mm		85	100 lm	6000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip, Flexible
