12V-NB-RGB-12M

Obsolete

Inspired LED, LLC

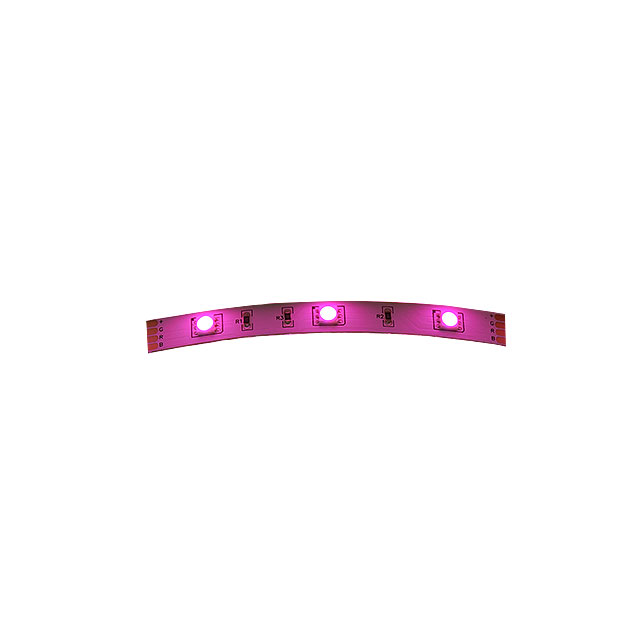

LED ENG RGB 3LEDS 12M REEL

Search across all available documentation for this part.

Obsolete

Inspired LED, LLC

LED ENG RGB 3LEDS 12M REEL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine - Red, Green, Blue (RGB) Linear Light Strip, Flexible

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	12V-NB-RGB-12M	12V-NB Series

CCT (K)	-	6000 K
Color	Red, Green, Blue	Green, Blue, Red, Cool, White
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	-	85
Height [z]	2.25 mm	1.5 - 2.25 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	-	100 lm
Size / Dimension	-	12000 mm
Size / Dimension	-	8 mm
Size / Dimension	-	97.03 mm
Type	LED Engine	LED Engine
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	12 V	12 V
Wavelength	625nm Red, 565nm Green, 465nm Blue	625nm Red, 565nm Green, 465nm Blue
Wavelength	-	465 - 625 nm

LED ENG GRN 565NM 3LEDS 12M REEL

Part	Configuration	Type	Lens Type	Height [z]	Voltage - Forward (Vf) (Typ)	Wavelength	Color	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [custom]	Wavelength	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	CCT (K)
Inspired LED, LLC 12V-NB-GRN-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V	565 nm	Green	120 °	12000 mm	8 mm	97.03 mm
Inspired LED, LLC 12V-NB-BLU-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V	465 nm	Blue	120 °	12000 mm	8 mm	97.03 mm
Inspired LED, LLC 12V-NB-RED-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V	625 nm	Red	120 °	12000 mm	8 mm	97.03 mm
Inspired LED, LLC 12V-NB-RGB-12M	Flexible, Linear Light Strip	LED Engine	Flat	2.25 mm	12 V		Blue, Green, Red	120 °				465nm Blue, 565nm Green, 625nm Red
Inspired LED, LLC 12V-NB-CW-12M	Flexible, Linear Light Strip	LED Engine	Flat	1.5 mm	12 V		Cool, White	120 °	12000 mm	8 mm	97.03 mm		85	100 lm	6000 K
