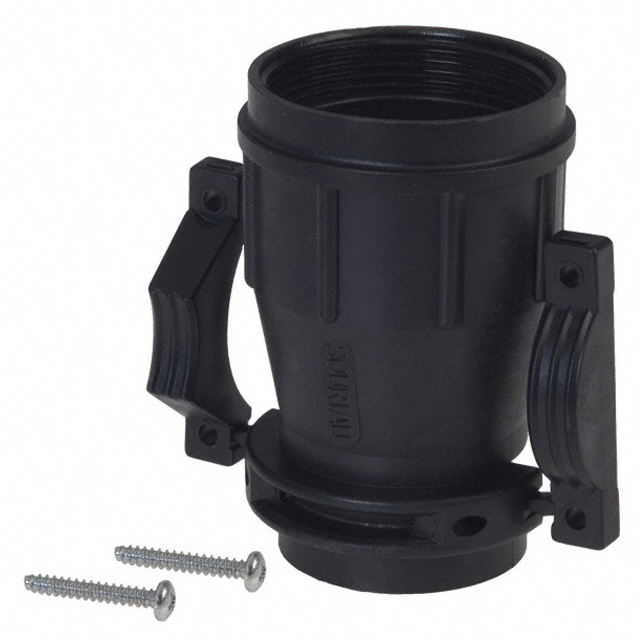

UTG24AC
ActiveSouriau-Sunbank by Eaton
CONN BCKSH W CLP SZ24 1 7/16-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTG24AC
ActiveSouriau-Sunbank by Eaton
CONN BCKSH W CLP SZ24 1 7/16-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTG24AC |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [diameter] | 1.063 in |
| Cable Opening [Max] [diameter] | 27 mm |
| Cable Opening [Min] [diameter] | 0.315 in |
| Cable Opening [Min] [diameter] | 8 mm |
| Color | Black |
| Diameter - Outside [diameter] | 42.9 mm |
| Diameter - Outside [diameter] | 1.689 in |
| Features | Clamp Screws |
| For Use With/Related Products | Trim Trio® UTG and UTP Connectors |
| Includes | 2 pc Cable Clamp, 1 Backshell, 2 Screws |
| Material | Thermoplastic |
| Shell Size - Insert | 24 |
| Thread Size | 1 7/16-18 UNEF |
| Type | Backshell, Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.66 | |
| 10 | $ 9.60 | |||
| 25 | $ 9.04 | |||
| 50 | $ 8.81 | |||
| 100 | $ 8.58 | |||
| 250 | $ 7.65 | |||
| 500 | $ 7.19 | |||
| 1000 | $ 6.35 | |||
Description
General part information
UTG24 Series
Black Connector Backshell, Cable Clamp 1 7/16-18 UNEF 24
