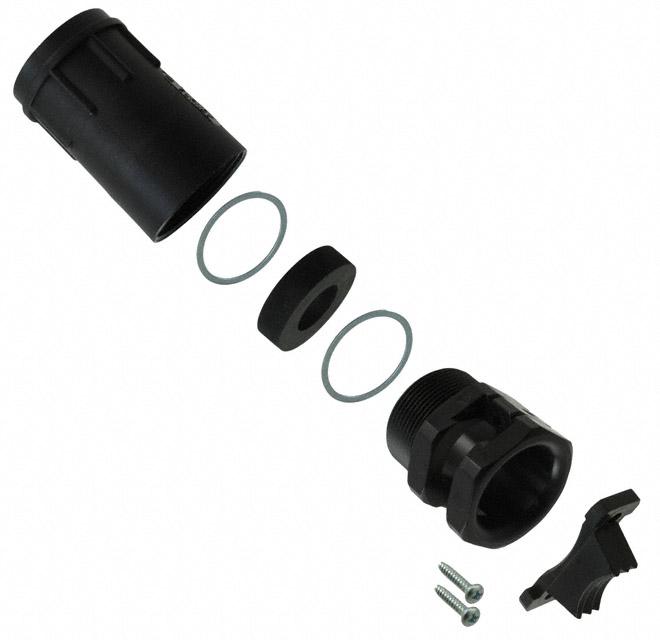

UTG24PG

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ24 BLK PG29

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ24 BLK PG29

Technical Specifications

Parameters and characteristics for this part

Specification	UTG24PG

Cable Exit	180 °
Cable Opening [custom]	19 mm, 35 mm
Cable Opening [custom]	1.378 in, 0.748 in
Color	Black
Diameter - Outside [diameter]	42.9 mm
Diameter - Outside [diameter]	1.689 in
Features	Clamp Screws, Cable Gland, Washers
For Use With/Related Products	Trim Trio® UTG and UTP Connectors
Includes	2 Washers, 2 Screws, 1 Backshell, 1 Cable Gland, 1 Cable Clamp
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Thermoplastic
Shell Size - Insert	24
Thread Size	PG29
Type	Backshell, Cable Clamp

Part	Cable Exit	Material	Features	Includes	Shell Size - Insert	Color	Ingress Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Cable Opening [custom]	Cable Opening [custom]	Thread Size	For Use With/Related Products	Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Souriau-Sunbank by Eaton UTG24PG	180 °	Thermoplastic	Cable Gland Clamp Screws Washers	1 Backshell 1 Cable Clamp 1 Cable Gland 2 Screws 2 Washers	24	Black	IP65 - Dust Tight Water Resistant	42.9 mm	1.689 in	Backshell Cable Clamp	19 mm 35 mm	0.748 in 1.378 in	PG29	Trim Trio® UTG and UTP Connectors
Souriau-Sunbank by Eaton UTG24AD	180 °	Metal			24	Black		42.9 mm	1.689 in	Backshell Heat Shrink Adapter			1 7/16-18 UNEF	Trim Trio® UTG and UTP Connectors	Anodized
Souriau-Sunbank by Eaton UTG24AC	180 °	Thermoplastic	Clamp Screws	1 Backshell 2 pc Cable Clamp 2 Screws	24	Black		42.9 mm	1.689 in	Backshell Cable Clamp			1 7/16-18 UNEF	Trim Trio® UTG and UTP Connectors		1.063 in	0.315 in	27 mm	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp PG29 24
