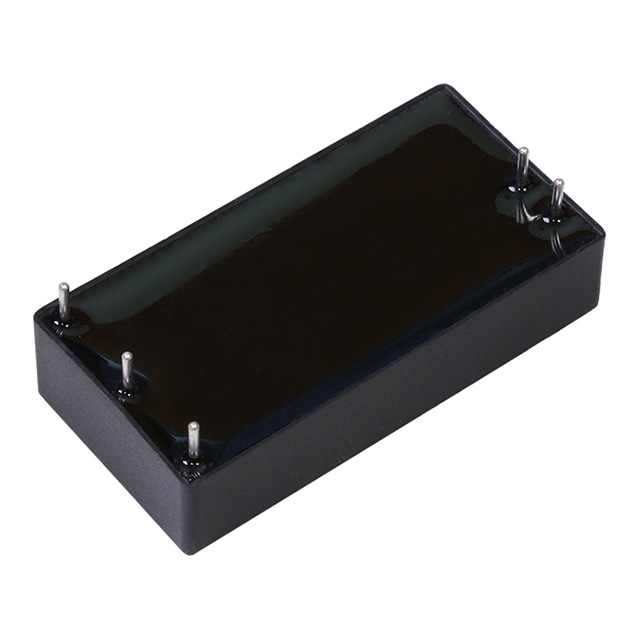

AEE01H12-M

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 24V 15W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 24V 15W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 53.45

General part information

Isolated Module DC DC Converter 1 Output 24V 625mA 9V - 18V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 24V 40W

Part	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Voltage - Isolation	Type	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Package / Case
ARTESYN / Advanced Energy AEE01H18-LHS	40 W	36 V	9 V	ITE (Commercial)	91 %	1	66 °C	-40 °C	6-DIP Module	Through Hole	1.5 kV	Isolated Module	1.67 A	24 V	17.2 mm	50.8 mm	31 mm	0.68 in	2 in	1.22 "
ARTESYN / Advanced Energy AEE01H12-M	15 W	18 V	9 V	ITE (Commercial), Medical	88 %	1	80 ¯C	-40 °C	5-DIP Module	Through Hole	4.2 kV	Isolated Module	625 mA	24 V	12 mm	50.8 mm	25.4 mm	0.47 "	2 in	25.4 mm	OCP, OVP, SCP	4 Lead
ARTESYN / Advanced Energy AEE01H18-L	40 W	36 V	9 V	ITE (Commercial)	92 %	1	85 °C	-40 °C	6-DIP Module	Through Hole	1.5 kV	Isolated Module	1.67 A	24 V	11 mm	50.8 mm	25.4 mm	0.43 "	2 in	25.4 mm	OCP, OTP, OVP, Remote On/Off
