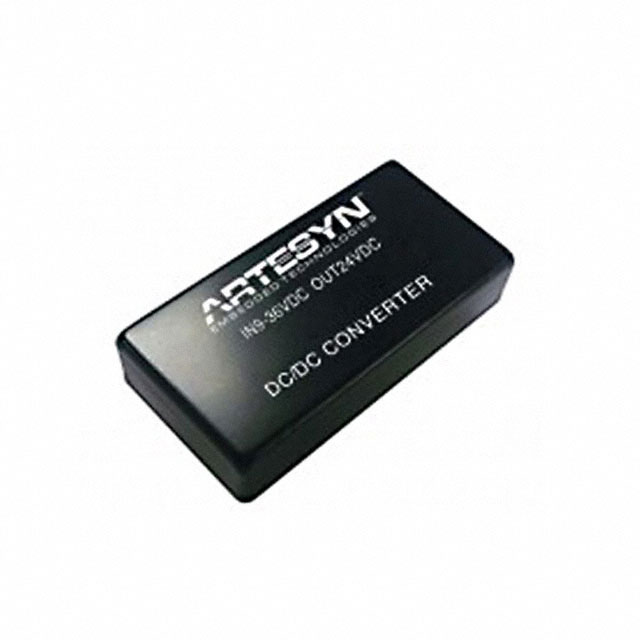

AEE01H18-L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 24V 40W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 24V 40W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 1.67A 9V - 36V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 24V 40W

Part	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Voltage - Isolation	Type	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Package / Case
ARTESYN / Advanced Energy AEE01H18-LHS	40 W	36 V	9 V	ITE (Commercial)	91 %	1	66 °C	-40 °C	6-DIP Module	Through Hole	1.5 kV	Isolated Module	1.67 A	24 V	17.2 mm	50.8 mm	31 mm	0.68 in	2 in	1.22 "
ARTESYN / Advanced Energy AEE01H12-M	15 W	18 V	9 V	ITE (Commercial), Medical	88 %	1	80 ¯C	-40 °C	5-DIP Module	Through Hole	4.2 kV	Isolated Module	625 mA	24 V	12 mm	50.8 mm	25.4 mm	0.47 "	2 in	25.4 mm	OCP, OVP, SCP	4 Lead
ARTESYN / Advanced Energy AEE01H18-L	40 W	36 V	9 V	ITE (Commercial)	92 %	1	85 °C	-40 °C	6-DIP Module	Through Hole	1.5 kV	Isolated Module	1.67 A	24 V	11 mm	50.8 mm	25.4 mm	0.43 "	2 in	25.4 mm	OCP, OTP, OVP, Remote On/Off
