CONNECTOR HOUSING, RECEPTACLE, 3 POSITIONS, 2.54 MM, M20 SERIES CRIMP CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN 3D Product Image EN +3

M20-1060300

Active

Harwin Inc.

CONNECTOR HOUSING, RECEPTACLE, 3 POSITIONS, 2.54 MM, M20 SERIES CRIMP CONTACTS

Deep-Dive with AI

DocumentsManufacturer Catalogue EN 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-1060300

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

M20-106 Series

Part	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Insulation Material	Color	Note	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Contact Type
Harwin Inc. M20-1060800	2.54 mm	0.1 in	8	Receptacle	Thermoplastic	Black	Contacts Not Included	1	Free Hanging (In-Line)	-25 °C	85 °C	Crimp	Female Socket
Harwin Inc. M20-1060200	2.54 mm	0.1 in	2	Receptacle	Thermoplastic	Black	Contacts Not Included	1	Free Hanging (In-Line)	-25 °C	85 °C	Crimp	Female Socket
Harwin Inc. M20-1060100			1	Receptacle	Thermoplastic	Black	Contacts Not Included	1	Free Hanging (In-Line)	-25 °C	85 °C	Crimp	Female Socket
Harwin Inc. M20-1060300	2.54 mm	0.1 in		Receptacle	Thermoplastic	Black	Contacts Not Included	1	Free Hanging (In-Line)	-25 °C	85 °C	Crimp	Female Socket
Harwin Inc. M20-1060900	2.54 mm	0.1 in	9	Receptacle	Thermoplastic	Black	Contacts Not Included	1	Free Hanging (In-Line)	-25 °C	85 °C	Crimp	Female Socket
Harwin Inc. M20-1061000	2.54 mm	0.1 in	10	Receptacle	Thermoplastic	Black	Contacts Not Included	1	Free Hanging (In-Line)	-25 °C	85 °C	Crimp	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.15
		25	$ 0.14
		50	$ 0.13
		100	$ 0.12
		250	$ 0.10
		500	$ 0.10
		1000	$ 0.08
		3000	$ 0.07

Description

General part information

M20-106 Series

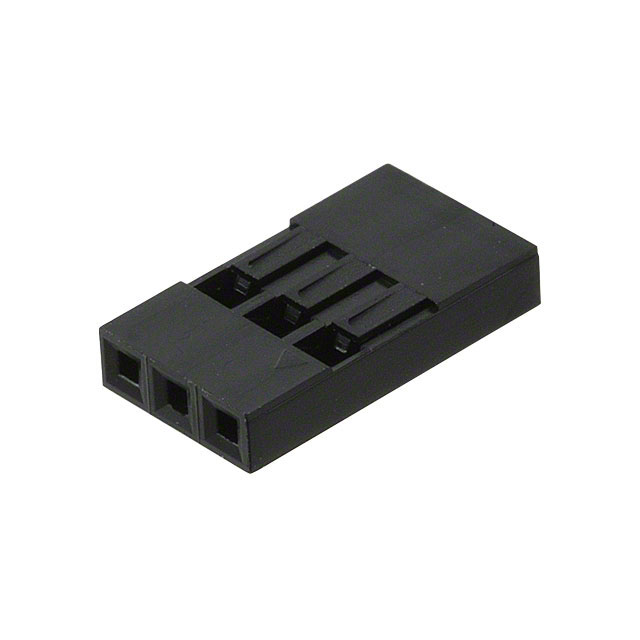

The M20-1060300 is a 3-position single row SIL Crimp Housing made of black polyphenylene and polystyrene (PPE + PS). It can be used with M20-1160042, M20-1160046, M20-1180042 or M20-1180046 crimp contacts and mating male connectors.
