EVB_RT4532WSC

Active

Richtek USA Inc.

EVAL MODULE FOR RT4532WSC

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT4532WSC

Technical Specifications

Parameters and characteristics for this part

Part	Dimming	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Mounting Type	Applications	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Frequency	Number of Outputs	Internal Switch(s)	Voltage - Supply (Max)	Voltage - Supply (Min) [Min]	Supplied Contents	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Features	Outputs and Type
Richtek USA Inc. RT4532WSC	I2C PWM	DC DC Regulator	10-UFBGA WLCSP	85 °C	-40 °C	Step-Up (Boost)	Surface Mount	Backlight	2.07	10-WLCSP	0.87	1.1 MHz	2		5.5 V	2.5 V
Richtek USA Inc. EVB_RT4532WSC																	Board(s)	17 V	2.5 V	5.5 V	RT4532	Dimmable	2 Isolated Outputs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

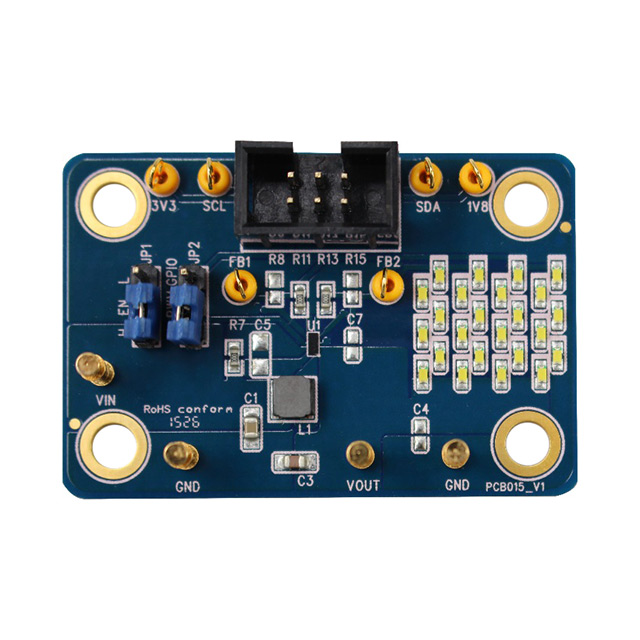

RT4532 - 2 Isolated Outputs Dimmable LED Driver Evaluation Board

Technical documentation and resources
