RT4532WSC
ActiveRichtek USA Inc.
IC LED DRIVER RGLTR I2C 10WLCSP
RT4532WSC
ActiveRichtek USA Inc.
IC LED DRIVER RGLTR I2C 10WLCSP
Description
General part information
RT4532 Series
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) I2C, PWM Dimming 10-WLCSP (0.87x2.07)
Technical Specifications
Parameters and characteristics for this part
| Specification | RT4532WSC |
|---|---|
| Applications | Backlight |
| Dimming | PWM, I2C |
| Frequency | 1.1 MHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |

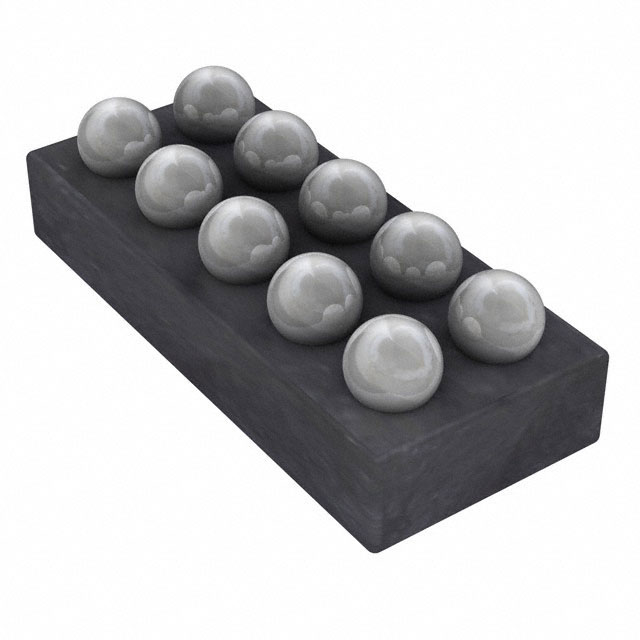

| Package / Case | 10-UFBGA, WLCSP |
| Package Length | 0.87 mm |
| Package Name | 10-WLCSP |
| Package Width | 2.07 mm |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
