PJ-041H

Active

CUI Devices

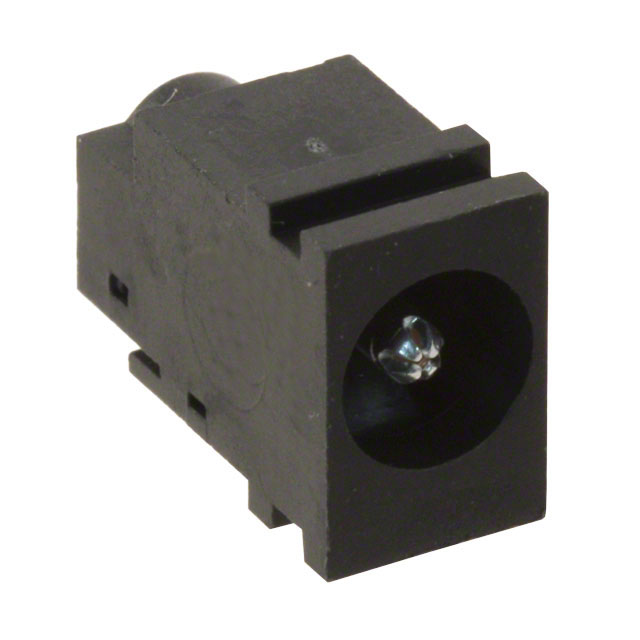

CONN DC POWER JACK RCP 2 POS SOLDER POT RA THRU-HOLE 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CUI Devices

CONN DC POWER JACK RCP 2 POS SOLDER POT RA THRU-HOLE 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-041H

Actual Diameter [diameter]	0.203 in, 0.065 "
Actual Diameter [diameter]	5.15 mm, 1.65 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Board Guide
Gender	Male
Industry Recognized Mating Diameter [custom]	4.75 mm
Industry Recognized Mating Diameter [custom]	0.068 "
Industry Recognized Mating Diameter [custom]	1.75 mm
Industry Recognized Mating Diameter [custom]	0.187 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [x]	8.2 mm
Mating Length/Depth [x]	0.323 in
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Internal Switch(s)	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Current Rating (Amps)	Termination	Shielding	Contact Material	Housing Material	Mating Length/Depth	Mating Length/Depth	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Body Color	Voltage - Rated	Contact Material - Plating [custom]	Features	Mounting Type	Gender	Connector Type	Mating Length/Depth [x]	Mating Length/Depth [x]	Internal Switch(s)	Number of Positions/Contacts
CUI Devices PJ-041-SMT-TR		0.028 "	0.7 mm	2.35 mm	0.093 "	2	2	0.65 mm 2.6 mm	0.026 " 0.102 in	1 A	Solder	Unshielded	Brass Copper Alloy	Polyamide (PA6T) Nylon 6T	0.303 "	7.7 mm	-25 °C	85 °C	UL94 V-0	Black	24 VDC	Silver	Board Guide	Through Hole Right Angle	Male	Jack
CUI Devices PJ-041H		0.068 "	1.75 mm	4.75 mm	0.187 "			1.65 mm 5.15 mm	0.065 " 0.203 in	5 A	Solder	Unshielded	Brass Copper Alloy				-25 °C	85 °C	UL94 V-0	Black	24 VDC	Silver	Board Guide	Through Hole Right Angle	Male	Jack	8.2 mm	0.323 in	Normally Closed Single Switch	2 Conductors 3 Conductors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 1.75mm ID (0.068"), 4.75mm OD (0.187") Through Hole, Right Angle
