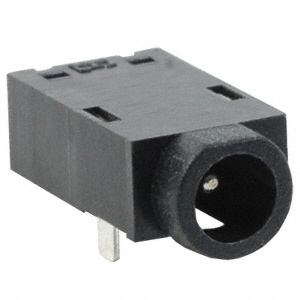

PJ-041-SMT-TR
ActiveCUI Devices
CONN PWR JACK 0.7X2.35MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-041-SMT-TR
ActiveCUI Devices
CONN PWR JACK 0.7X2.35MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-041-SMT-TR |
|---|---|
| Actual Diameter [diameter] | 2.6 mm, 0.65 mm |
| Actual Diameter [diameter] | 0.102 in, 0.026 " |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 1 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Industry Recognized Mating Diameter [custom] | 0.028 " |
| Industry Recognized Mating Diameter [custom] | 0.7 mm |
| Industry Recognized Mating Diameter [custom] | 2.35 mm |
| Industry Recognized Mating Diameter [custom] | 0.093 " |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.303 " |
| Mating Length/Depth | 7.7 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.79 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.61 | |||
| Tape & Reel (TR) | 1200 | $ 0.49 | ||
Description
General part information
PJ-041 Series
Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle
