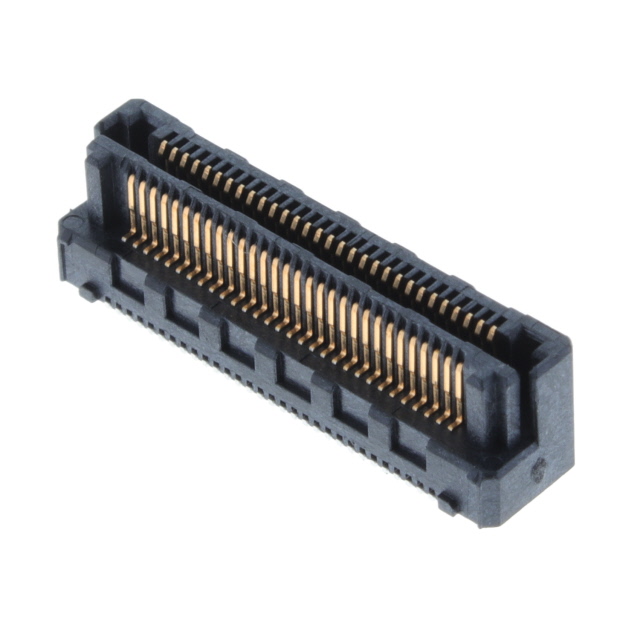

LSHM-130-04.0-F-DV-A-N-K-TR

Active

Samtec Inc.

MEZZANINE CONN, HERMAPHRODITIC, 60POS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet LSHM Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-130-04.0-F-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.215 in
Height Above Board	5.46 mm
Mated Stacking Heights	6.5 mm, 8 mm, 10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

LSHM-130 Series

Board to Board & Mezzanine Connectors 0.50 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Part	Number of Positions	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Contact Finish	Height Above Board	Height Above Board	Height Above Board
Samtec Inc. LSHM-130-02.5-F-DV-A-N-K-TR	60	Surface Mount	3.96 mm	0.156 in	0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	5 mm 5.5 mm 6.5 mm 8.5 mm	3 Áin	0.076 Ám	2	Board Guide Pick and Place	Gold
Samtec Inc. LSHM-130-04.0-L-DV-A-K-TR	60	Surface Mount			0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	6.5 mm 7 mm 8 mm 10 mm	10 Áin	0.25 Ám	2	Board Guide Pick and Place	Gold	0.215 in	5.46 mm
Samtec Inc. LSHM-130-04.0-F-DV-A-N-K-TR	60	Surface Mount			0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	6.5 mm 7 mm 8 mm 10 mm	3 Áin	0.076 Ám	2	Board Guide Pick and Place	Gold	0.215 in	5.46 mm
Samtec Inc. LSHM-120-02.5-F-DV-A-N-K-TR	40	Surface Mount	3.96 mm	0.156 in	0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	5 mm 5.5 mm 6.5 mm 8.5 mm	3 Áin	0.076 Ám	2	Board Guide Pick and Place	Gold
Samtec Inc. LSHM-130-L6.0-L-DV-A-S-TR	60	Surface Mount	7.45 mm	0.293 in	0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	8.5 mm 9 mm 10 mm 12 mm	10 Áin	0.25 Ám	2	Board Guide Shielded	Gold
Samtec Inc. LSHM-130-04.0-L-DV-A-N-TR	60	Surface Mount			0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	6.5 mm 7 mm 8 mm 10 mm	10 Áin	0.25 Ám	2	Board Guide	Gold	0.215 in	5.46 mm
Samtec Inc. LSHM-130-01-F-RH-A-S-TR	60				0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic		3 Áin	0.076 Ám	2	Board Guide Shielded	Gold	5.13 mm		0.202 in
Samtec Inc. LSHM-130-03.0-F-DV-A-N-TR	60	Surface Mount			0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	5.5 mm 6 mm 7 mm 9 mm	3 Áin	0.076 Ám	2	Board Guide	Gold	4.45 mm		0.175 in
Samtec Inc. LSHM-130-01-F-RH-A-S-K-TR	60				0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic		3 Áin	0.076 Ám	2	Board Guide Pick and Place Shielded	Gold	5.13 mm		0.202 in
Samtec Inc. LSHM-130-02.5-L-DV-A-S-K-TR	60	Surface Mount	3.96 mm	0.156 in	0.5 mm	0.02 in	Self Mating Non-Gendered Hermaphroditic	5 mm 5.5 mm 6.5 mm 8.5 mm	10 Áin	0.25 Ám	2	Board Guide Pick and Place Shielded	Gold
