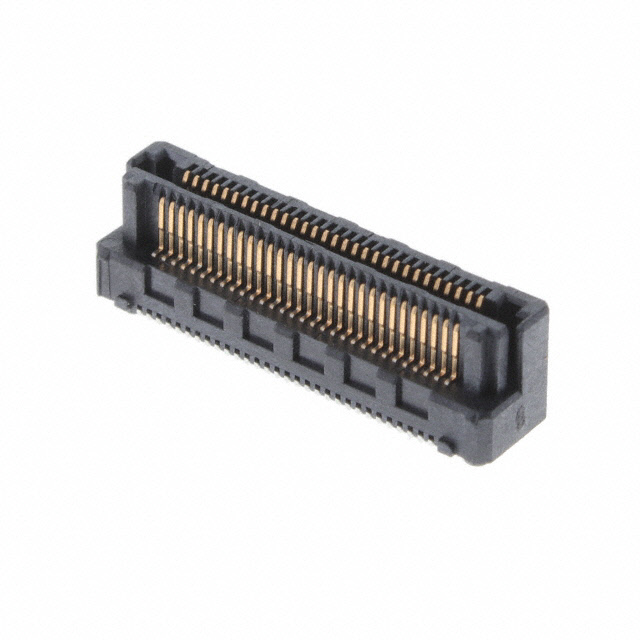

LSHM-130-04.0-L-DV-A-N-TR
ActiveSamtec Inc.
CONN SELF-MATE 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-130-04.0-L-DV-A-N-TR
ActiveSamtec Inc.
CONN SELF-MATE 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-130-04.0-L-DV-A-N-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide |
| Height Above Board | 0.215 in |
| Height Above Board | 5.46 mm |
| Mated Stacking Heights | 6.5 mm, 8 mm, 10 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
LSHM-130 Series
Board to Board & Mezzanine Connectors 0.50 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip
| Part | Number of Positions | Mounting Type | Height Above Board [z] | Height Above Board [z] | Pitch [x] | Pitch [x] | Connector Type | Mated Stacking Heights | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Features | Contact Finish | Height Above Board | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 60 | Surface Mount | 3.96 mm | 0.156 in | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 5 mm 5.5 mm 6.5 mm 8.5 mm | 3 Áin | 0.076 Ám | 2 | Board Guide Pick and Place | Gold | |||
Samtec Inc. | 60 | Surface Mount | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 6.5 mm 7 mm 8 mm 10 mm | 10 Áin | 0.25 Ám | 2 | Board Guide Pick and Place | Gold | 0.215 in | 5.46 mm | |||
Samtec Inc. | 60 | Surface Mount | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 6.5 mm 7 mm 8 mm 10 mm | 3 Áin | 0.076 Ám | 2 | Board Guide Pick and Place | Gold | 0.215 in | 5.46 mm | |||
Samtec Inc. | 40 | Surface Mount | 3.96 mm | 0.156 in | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 5 mm 5.5 mm 6.5 mm 8.5 mm | 3 Áin | 0.076 Ám | 2 | Board Guide Pick and Place | Gold | |||
Samtec Inc. | 60 | Surface Mount | 7.45 mm | 0.293 in | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 8.5 mm 9 mm 10 mm 12 mm | 10 Áin | 0.25 Ám | 2 | Board Guide Shielded | Gold | |||
Samtec Inc. | 60 | Surface Mount | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 6.5 mm 7 mm 8 mm 10 mm | 10 Áin | 0.25 Ám | 2 | Board Guide | Gold | 0.215 in | 5.46 mm | |||
Samtec Inc. | 60 | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 3 Áin | 0.076 Ám | 2 | Board Guide Shielded | Gold | 5.13 mm | 0.202 in | |||||
Samtec Inc. | 60 | Surface Mount | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 5.5 mm 6 mm 7 mm 9 mm | 3 Áin | 0.076 Ám | 2 | Board Guide | Gold | 4.45 mm | 0.175 in | |||
Samtec Inc. | 60 | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 3 Áin | 0.076 Ám | 2 | Board Guide Pick and Place Shielded | Gold | 5.13 mm | 0.202 in | |||||
Samtec Inc. | 60 | Surface Mount | 3.96 mm | 0.156 in | 0.5 mm | 0.02 in | Self Mating Non-Gendered Hermaphroditic | 5 mm 5.5 mm 6.5 mm 8.5 mm | 10 Áin | 0.25 Ám | 2 | Board Guide Pick and Place Shielded | Gold |
