SME312LPCQDP

Active

BANNER ENGINEERING

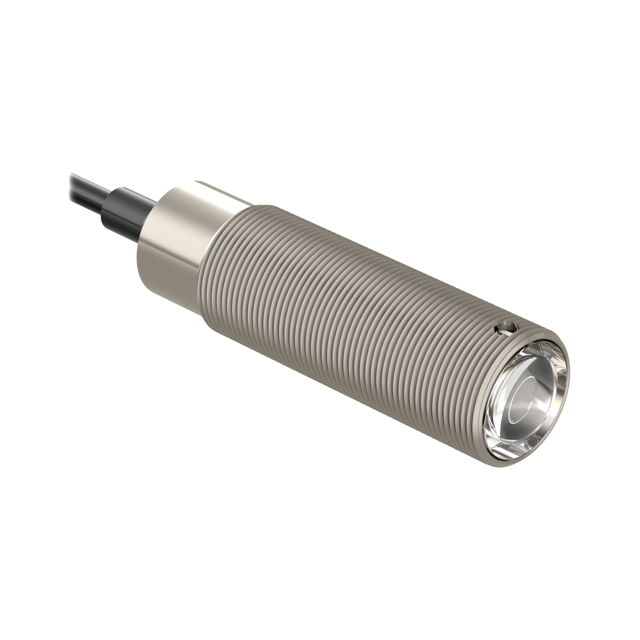

SME312LPCQDP 5PIN EURO PIGTAIL POLRZD RETRO CLEAR PROD DETECT

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SME312LPCQDP 5PIN EURO PIGTAIL POLRZD RETRO CLEAR PROD DETECT

Technical Specifications

Parameters and characteristics for this part

Specification	SME312LPCQDP

Adjustment Type	Adjustable
Connection Method	Connector
Ingress Protection	NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67
Light Source	RED (650nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	500 µs
Sensing Distance	39.37 in
Sensing Distance	1 m
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Light Source	Output Configuration	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Sensing Method	Adjustment Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length	Ingress Protection	Sensing Distance	Sensing Distance
BANNER ENGINEERING SME312FVW	LED	Dark-ON/Light-ON NPN/PNP Selectable	500 µs	30 VDC	10 VDC	Cable	Fiber Optic	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312FPWQD	LED	Dark-ON/Light-ON NPN/PNP Selectable	500 µs	30 VDC	10 VDC	Connector		Adjustable	-20 C	70 °C			NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312FQD	Infrared LED	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Fiber Optic	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312LPCQDP	RED (650nm)	Dark-ON/Light-ON NPN/PNP Selectable	500 µs	30 VDC	10 VDC	Connector	Polarized Retroreflective	Adjustable	-20 C	70 °C			NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	39.37 in	1 m
BANNER ENGINEERING SME312FPQD	RED (650nm)	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Fiber Optic	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312LPCQD	Red LED	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Polarized Retroreflective	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	39.37 in	1 m
BANNER ENGINEERING SME312DQD	Infrared	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Diffuse	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	14.961 in	380 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 191.00
Newark	Each	1	$ 197.00

General part information

Retroreflective, Polarized Optical Sensor 39.370" (1m) NPN/PNP - Dark-ON/Light-ON - Selectable
