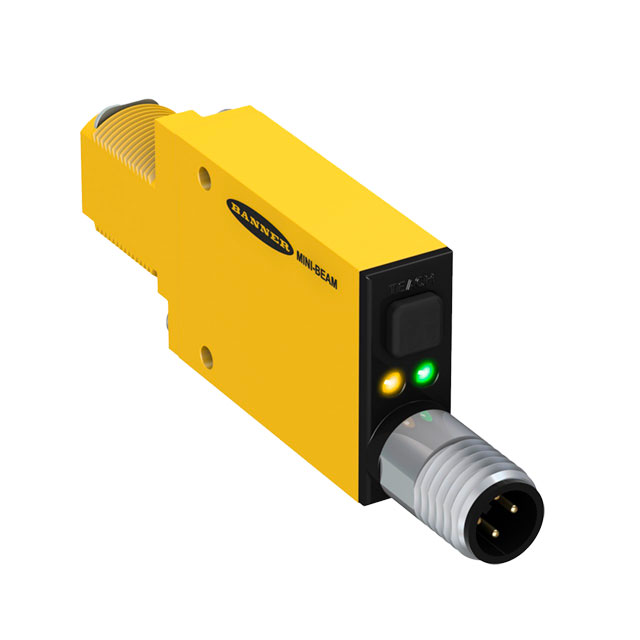

SME312FQD

Active

BANNER ENGINEERING

MINI-BEAM EXPERT: INFRARED 880NM GLASS FIBER OPTIC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

MINI-BEAM EXPERT: INFRARED 880NM GLASS FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Output Configuration	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Sensing Method	Adjustment Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length	Ingress Protection	Sensing Distance	Sensing Distance
BANNER ENGINEERING SME312FVW	LED	Dark-ON/Light-ON NPN/PNP Selectable	500 µs	30 VDC	10 VDC	Cable	Fiber Optic	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312FPWQD	LED	Dark-ON/Light-ON NPN/PNP Selectable	500 µs	30 VDC	10 VDC	Connector		Adjustable	-20 C	70 °C			NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312FQD	Infrared LED	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Fiber Optic	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312LPCQDP	RED (650nm)	Dark-ON/Light-ON NPN/PNP Selectable	500 µs	30 VDC	10 VDC	Connector	Polarized Retroreflective	Adjustable	-20 C	70 °C			NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	39.37 in	1 m
BANNER ENGINEERING SME312FPQD	RED (650nm)	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Fiber Optic	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67
BANNER ENGINEERING SME312LPCQD	Red LED	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Polarized Retroreflective	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	39.37 in	1 m
BANNER ENGINEERING SME312DQD	Infrared	NPN/PNP	500 µs	30 VDC	10 VDC	Cable	Diffuse	Adjustable	-20 C	70 °C	78.74 in	2 m	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	14.961 in	380 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 156.00
Newark	Each	1	$ 161.00

General part information

Fiber Optic Optical Sensor NPN/PNP
