M80-4125042

Active

Harwin Inc.

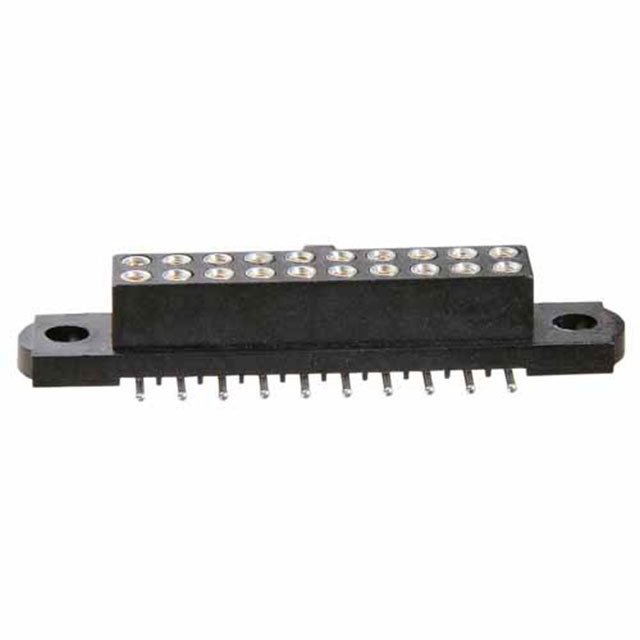

HEADER CONNECTOR,PCB MOUNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,SURFACE MOUNT TERMINAL,LOCKING ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 Datasheet +3

M80-4125042

Active

Harwin Inc.

HEADER CONNECTOR,PCB MOUNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,SURFACE MOUNT TERMINAL,LOCKING ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4125042

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	137.8 Áin
Contact Finish Thickness - Post	3.5 Ám
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.95 mm, 7.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-412 Series

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Voltage Rating	Contact Finish - Mating	Insulation Material	Style	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Mounting Type	Insulation Color	Connector Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Post	Applications	Contact Type
Harwin Inc. M80-4121005	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.98 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	10 çin	0.25 çm	10	Gold	Automotive General Purpose Military	Female Socket
Harwin Inc. M80-4121042	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.95 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	137.8 Áin	3.5 Ám	10	Tin	Automotive General Purpose Military	Female Socket
Harwin Inc. M80-4125042	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.95 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	137.8 Áin	3.5 Ám	50	Tin	Automotive General Purpose Military	Female Socket
Harwin Inc. M80-4123442	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.95 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	137.8 Áin	3.5 Ám	34	Tin	Automotive General Purpose Military	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.99
		12	$ 16.17
Newark	Each	100	$ 19.15
		250	$ 18.11
		500	$ 17.60
		1000	$ 17.21

Description

General part information

M80-412 Series

50 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

M80-001

Datasheet

M80-0110001

M80, M83 Series Spec Sheet

Datasheet

3D Product Image EN

Datasheet
