M80-4121005

Active

Harwin Inc.

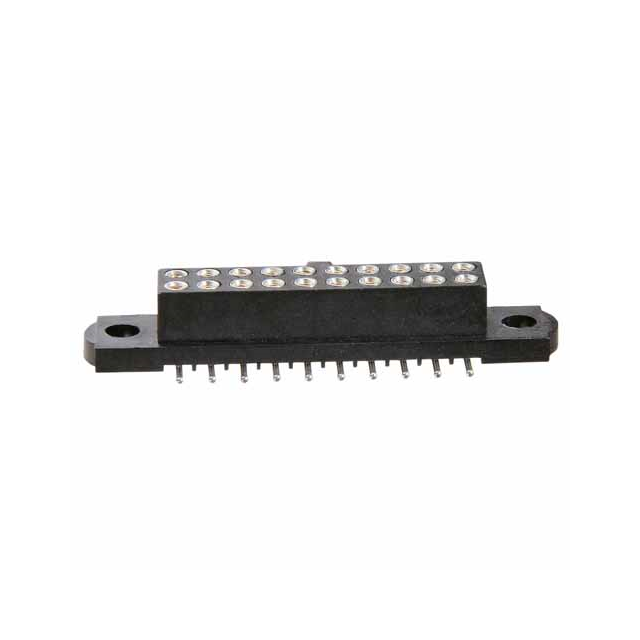

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +2

M80-4121005

Active

Harwin Inc.

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, PLUG,

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4121005

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.7 mm, 7.98 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-412 Series

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Voltage Rating	Contact Finish - Mating	Insulation Material	Style	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Mounting Type	Insulation Color	Connector Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Post	Applications	Contact Type
Harwin Inc. M80-4121005	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.98 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	10 çin	0.25 çm	10	Gold	Automotive General Purpose Military	Female Socket
Harwin Inc. M80-4121042	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.95 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	137.8 Áin	3.5 Ám	10	Tin	Automotive General Purpose Military	Female Socket
Harwin Inc. M80-4125042	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.95 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	137.8 Áin	3.5 Ám	50	Tin	Automotive General Purpose Military	Female Socket
Harwin Inc. M80-4123442	All	5.6 mm	0.22 in	Circular	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Solder	120 VDC	Gold	Polyphenylene Sulfide (PPS) Glass Filled	Board to Board Cable	7.7 mm 7.95 mm	12 µin	0.3 µm	-55 °C	125 °C	Mating Flange Polarizing Key	Beryllium Copper	Surface Mount	Black	Receptacle	2	137.8 Áin	3.5 Ám	34	Tin	Automotive General Purpose Military	Female Socket
