245-40-1-06
ActiveCnC Tech, LLC

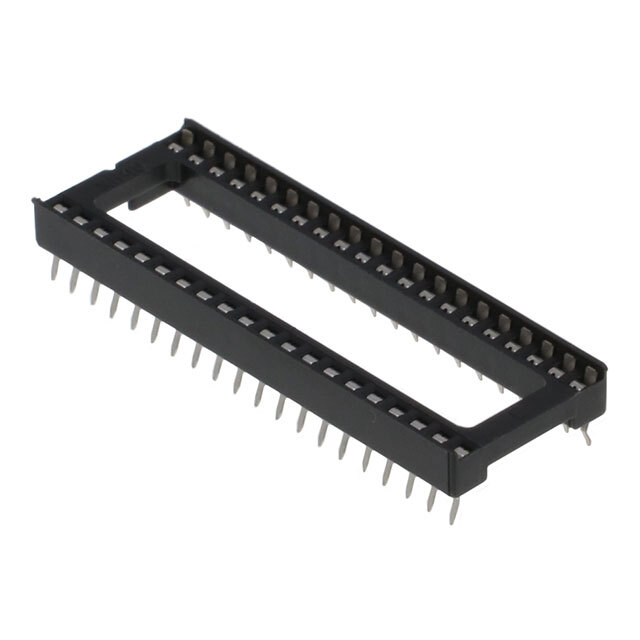

CONN IC DIP SOCKET 40POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
245-40-1-06
ActiveCnC Tech, LLC
CONN IC DIP SOCKET 40POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 245-40-1-06 |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 60 Áin |
| Contact Finish Thickness - Mating | 1.52 Ám |
| Contact Finish Thickness - Post | 60 µin |
| Contact Finish Thickness - Post | 1.52 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 20 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Kinked Pin |
| Number of Positions or Pins (Grid) | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.15 mm |
| Termination Post Length | 0.124 in |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
245 Series
| Part | Type | Type | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Finish - Post | Termination | Contact Resistance | Contact Material - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Material - Post | Material Flammability Rating | Termination Post Length | Termination Post Length | Pitch - Post | Pitch - Post | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) | Features | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | 0.3 " | 7.62 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 8 | Open Frame | ||
CnC Tech, LLC | 0.3 " | 7.62 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 16 | Open Frame | ||
CnC Tech, LLC | 0.3 " | 7.62 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 20 | Open Frame | ||
CnC Tech, LLC | 0.3 " | 7.62 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 14 | Open Frame | ||
CnC Tech, LLC | 0.6 in | 15.24 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 40 | Open Frame | 20 | 2 |
CnC Tech, LLC | 0.6 in | 15.24 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 24 | Open Frame | ||
CnC Tech, LLC | 0.6 in | 15.24 mm | DIP | 60 µin | 1.52 µm | Kinked Pin Through Hole | Tin | Solder | 20 mOhm | Phosphor Bronze | 60 Áin | 1.52 Ám | 1 A | 0.1 in | 2.54 mm | Phosphor Bronze | UL94 V-0 | 3.15 mm | 0.124 in | 2.54 mm | 0.1 in | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | 28 | Open Frame |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.94 | |
| 12 | $ 0.79 | |||
| 36 | $ 0.76 | |||
| 60 | $ 0.74 | |||
| 108 | $ 0.71 | |||
| 252 | $ 0.65 | |||
| 504 | $ 0.58 | |||
| 1008 | $ 0.52 | |||
| 2508 | $ 0.47 | |||
Description
General part information
245 Series
40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole, Kinked Pin
