245-24-1-06

Active

CnC Tech, LLC

CONN IC DIP SOCKET 24POS TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	245-24-1-06

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	20 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Kinked Pin
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	DIP
Type	0.6 in
Type	15.24 mm

245 Series

Part	Type	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Termination	Contact Resistance	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material - Post	Material Flammability Rating	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
CnC Tech, LLC 245-08-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	8	Open Frame
CnC Tech, LLC 245-16-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	16	Open Frame
CnC Tech, LLC 245-20-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	20	Open Frame
CnC Tech, LLC 245-14-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	14	Open Frame
CnC Tech, LLC 245-40-1-06	0.6 in	15.24 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	40	Open Frame	20	2
CnC Tech, LLC 245-24-1-06	0.6 in	15.24 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	24	Open Frame
CnC Tech, LLC 245-28-1-06	0.6 in	15.24 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	28	Open Frame

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.73
		10	$ 0.55
		25	$ 0.50
		50	$ 0.46
		100	$ 0.42
		250	$ 0.38
		500	$ 0.35
		1000	$ 0.33
		2500	$ 0.30

Description

General part information

245 Series

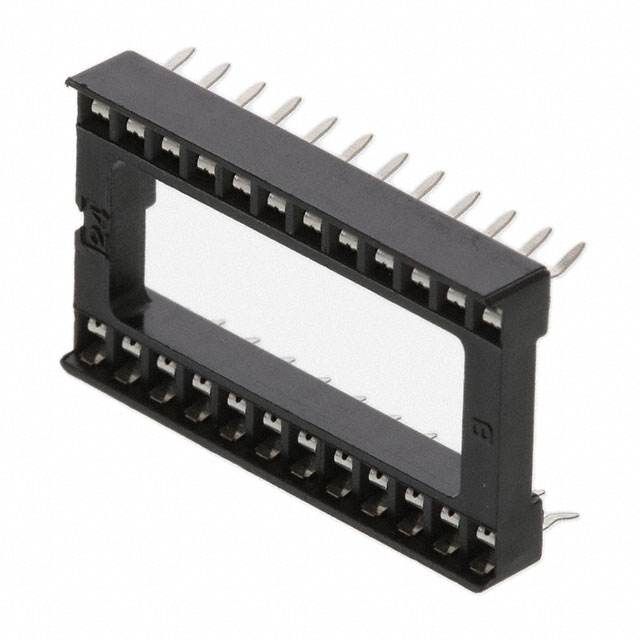

24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Through Hole, Kinked Pin
