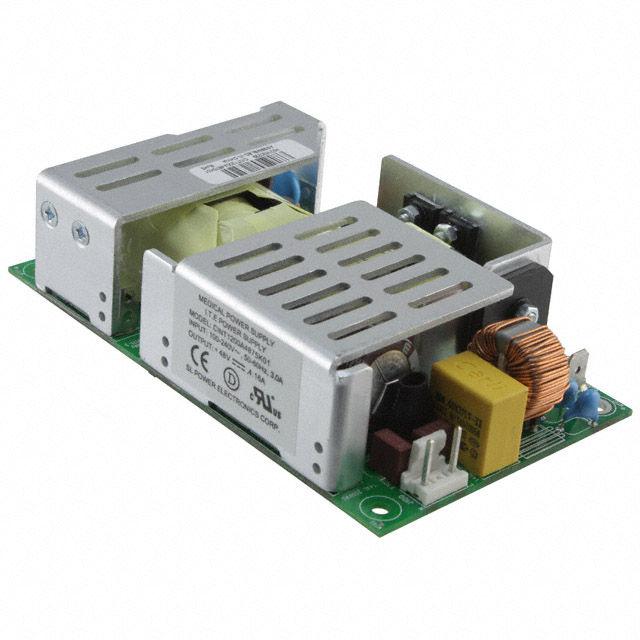

CINT1200A4875K01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 48V 180W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CINT1200A4875K01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 48V 180W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CINT1200A4875K01 | CINT1200 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE | CE |
| Current - Output 1 | 3.75 A | 3.75 - 15 A |
| Efficiency | 88 % | 88 % |
| Features | Universal Input, DC Input Capable | Universal Input, DC Input Capable |
| Minimum Load Required | False | False |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] [custom] | 158 °F | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Power (Watts) | 180 W | 180 W |
| Power (Watts) | 200 W | 200 W |
| Size / Dimension [x] | 5 in | 5 in |
| Size / Dimension [x] | 127 mm | 127 mm |
| Size / Dimension [y] | 3 " | 3 " |
| Size / Dimension [y] | 76.2 mm | 76.2 mm |
| Size / Dimension [z] | 1.3 " | 1.3 " |
| Size / Dimension [z] | 31.8 mm | 31.8 mm |
| Type | Open Frame | Open Frame |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Isolation | 4000 V | 4000 V |
| Voltage - Output 1 | 48 V | 12 - 48 V |
CINT1200 Series
AC/DC CONVERTER 48V 180W
| Part | Applications | Minimum Load Required | Current - Output 1 | Type | Approval Agency | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Power (Watts) | Mounting Type | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Number of Outputs | Efficiency | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SL POWER / Advanced Energy CINT1200A4875K01 | ITE (Commercial) | 3.75 A | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 48 V | |
SL POWER / Advanced Energy CINT1200A2875K01 | ITE (Commercial) | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 28 V | ||
SL POWER / Advanced Energy CINT1200A2475K01 | ITE (Commercial) | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 24 V | ||
SL POWER / Advanced Energy CINT1200A1275K01 | ITE (Commercial) | 15 A | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 12 V | |
SL POWER / Advanced Energy CINT1200A1875K01 | ITE (Commercial) | 10 A | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 18 V | |
SL POWER / Advanced Energy CINT1200A3675K01 | ITE (Commercial) | 5 A | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 36 V | |
SL POWER / Advanced Energy CINT1200A1575K01 | ITE (Commercial) | 12 A | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 15 V | |
SL POWER / Advanced Energy CINT1200A3275K01 | ITE (Commercial) | 5.62 A | Open Frame | CE | DC Input Capable, Universal Input | 3 " | 5 in | 1.3 " | 127 mm | 31.8 mm | 76.2 mm | 4000 V | 90 VAC | 264 VAC | 180 W | 200 W | Chassis Mount | -10 °C | 158 °F | 1 | 88 % | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 130.87 | |
| 5 | $ 126.85 | |||
| 10 | $ 122.82 | |||
| 40 | $ 114.77 | |||
| 80 | $ 110.74 | |||
Description
General part information
CINT1200 Series
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
