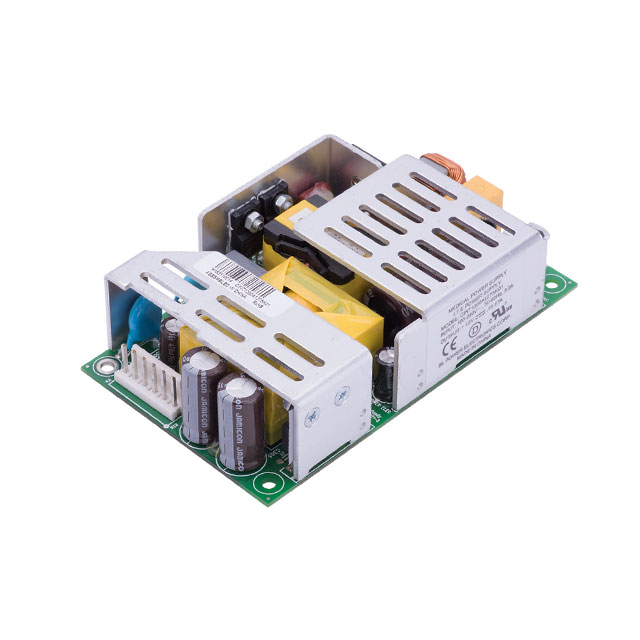

CINT1200A3275K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 32V 180W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CINT1200A3275K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 32V 180W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 114.77

Description

General part information

CINT1200 Series

Open Frame AC DC Converters 1 Output 32V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CINT1200A3275K01	CINT1200 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	5.62 A	3.75 - 15 A
Efficiency	88 %	88 %
Features	Universal Input, DC Input Capable	Universal Input, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Power (Watts)	180 W	180 W
Power (Watts)	200 W	200 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1.3 "	1.3 "
Size / Dimension [z]	31.8 mm	31.8 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	32 V	12 - 48 V

CINT1200 Series

AC/DC CONVERTER 48V 180W

Part	Applications	Current - Output 1	Type	Approval Agency	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Power (Watts)	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Outputs	Efficiency	Voltage - Output 1
SL POWER / Advanced Energy CINT1200A4875K01	ITE (Commercial)	3.75 A	Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	48 V
SL POWER / Advanced Energy CINT1200A2875K01	ITE (Commercial)		Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	28 V
SL POWER / Advanced Energy CINT1200A2475K01	ITE (Commercial)		Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	24 V
SL POWER / Advanced Energy CINT1200A1275K01	ITE (Commercial)	15 A	Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	12 V
SL POWER / Advanced Energy CINT1200A1875K01	ITE (Commercial)	10 A	Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	18 V
SL POWER / Advanced Energy CINT1200A3675K01	ITE (Commercial)	5 A	Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	36 V
SL POWER / Advanced Energy CINT1200A1575K01	ITE (Commercial)	12 A	Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	15 V
SL POWER / Advanced Energy CINT1200A3275K01	ITE (Commercial)	5.62 A	Open Frame	CE	DC Input Capable, Universal Input	3 "	5 in	1.3 "	127 mm	31.8 mm	76.2 mm	4000 V	90 VAC	264 VAC	180 W	200 W	Chassis Mount	-10 °C	158 °F	1	88 %	32 V
