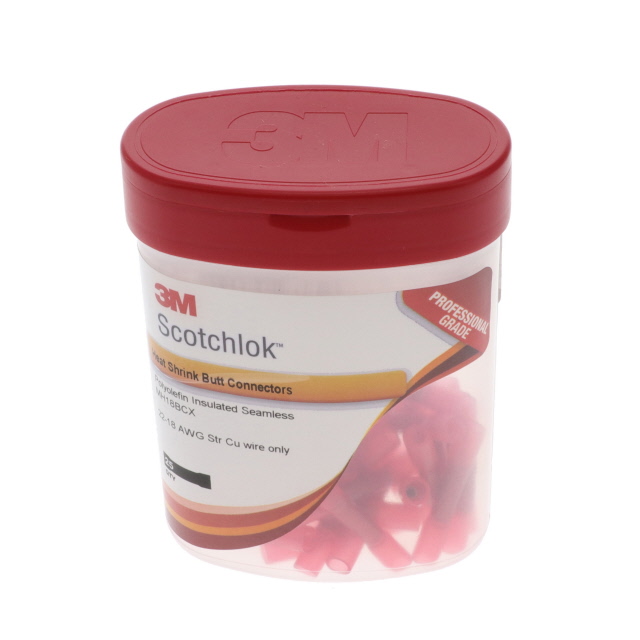

MH18BCX-BOTTLE

Active

CONN SPLICE 18-22 AWG CRIMP 25PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MH18/14/10BC Datasheet

MH18BCX-BOTTLE

Active

CONN SPLICE 18-22 AWG CRIMP 25PC

Deep-Dive with AI

DocumentsDatasheet MH18/14/10BC Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MH18BCX-BOTTLE	MH18 Series

Color	Red	Red
Contact Finish	-	Tin
Contact Material	-	ETP, Copper
Features	-	Brazed Seam
Insulation	Fully Insulated Heat Shrink	Insulated with Heat Shrink, Fully Insulated Heat Shrink
Length - Overall	-	25.4 mm
Length - Overall	-	1 in
Length - Ring Center to Termination	-	3.81 mm
Length - Ring Center to Termination	-	0.15 in
Length - Termination	-	13.97 - 15.49 mm
Length - Termination	-	0.55 - 0.61 in
Material - Insulation	-	Polyolefin
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	2	2
Stud/Tab Size	-	8 Stud
Stud/Tab Size	-	6 - 10 Stud
Terminal Type	Butt Splice, Inline, Individual Openings	Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 mm
Width - Outer Edges	-	0.25 - 0.32 in
Width - Outer Edges	-	6.35 - 8.13 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MH18 Series

CONN SPADE TERM 18-22AWG #8 25PC

Part	Contact Finish	Features	Contact Material	Terminal Type	Length - Termination	Length - Termination	Length - Overall	Length - Overall [x]	Termination	Stud/Tab Size	Color	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation [custom]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges [y]	Stud/Tab Size	Width - Outer Edges [y]	Number of Wire Entries
3M MH18-8FLX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Snap, Spring	13.97 mm	0.55 in	25.4 mm	1 in	Crimp	8 Stud	Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink
3M MH18-8R/LK	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp	8 Stud	Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in
3M MH18-10R/LX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in	10 Stud
3M MH18-10FLX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Snap, Spring	15.49 mm	0.61 in	25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink				0.32 in	10 Stud	8.13 mm
3M MH18-6R/LK	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in	6 Stud
3M MH18-10R/LK	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in	10 Stud
3M MH18BCX-BOTTLE				Butt Splice, Individual Openings, Inline					Crimp		Red		22 AWG	17.5 AWG				Fully Insulated Heat Shrink							2
3M MH18-6FLX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Snap, Spring	15.49 mm	0.61 in	25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink				0.25 "	6 Stud	6.35 mm
3M MH18-6FLK	Tin	Brazed Seam	Copper, ETP	Snap, Spring	15.49 mm	0.61 in	25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink				0.25 "	6 Stud	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.51

Description

General part information

MH18 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red

Documents

Technical documentation and resources

Datasheet

MH18/14/10BC Datasheet

Datasheet
