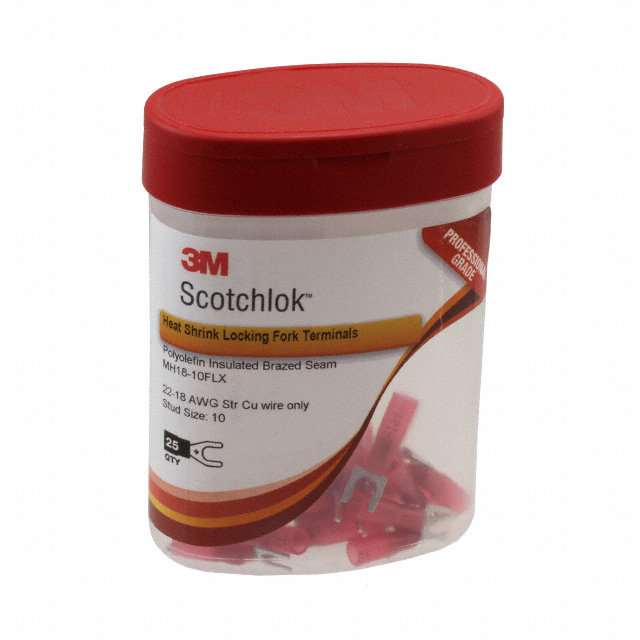

MH18-10FLX-BOTTLE

Active

CONN SPADE TERM 18-22AWG 10 25PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MH18-10FLX-BOTTLE

Active

CONN SPADE TERM 18-22AWG 10 25PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.63

Description

General part information

MH18 Series

Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MH18-10FLX-BOTTLE	MH18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated with Heat Shrink	Insulated with Heat Shrink, Fully Insulated Heat Shrink
Length - Overall	25.4 mm	25.4 mm
Length - Overall [x]	1 in	1 in
Length - Ring Center to Termination [x]	3.81 mm	3.81 mm
Length - Ring Center to Termination [x]	0.15 in	0.15 in
Length - Termination	15.49 mm	13.97 - 15.49 mm
Length - Termination	0.61 in	0.55 - 0.61 in
Material - Insulation [custom]	Polyolefin	Polyolefin
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	10 Stud	6 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Snap, Spring	Snap, Spring, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 mm
Width - Outer Edges [y]	8.13 mm	6.35 - 8.13 mm
Width - Outer Edges [y]	0.32 in	0.25 - 0.32 in
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MH18 Series

CONN SPADE TERM 18-22AWG #8 25PC

Part	Contact Finish	Features	Contact Material	Terminal Type	Length - Termination	Length - Termination	Length - Overall	Length - Overall [x]	Termination	Stud/Tab Size	Color	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation [custom]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges [y]	Stud/Tab Size	Width - Outer Edges [y]	Number of Wire Entries
3M MH18-8FLX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Snap, Spring	13.97 mm	0.55 in	25.4 mm	1 in	Crimp	8 Stud	Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink
3M MH18-8R/LK	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp	8 Stud	Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in
3M MH18-10R/LX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in	10 Stud
3M MH18-10FLX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Snap, Spring	15.49 mm	0.61 in	25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink				0.32 in	10 Stud	8.13 mm
3M MH18-6R/LK	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in	6 Stud
3M MH18-10R/LK	Tin	Brazed Seam	Copper, ETP	Circular			25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin			Insulated with Heat Shrink	0.03 in	0.76 mm	7.87 mm	0.31 in	10 Stud
3M MH18BCX-BOTTLE				Butt Splice, Individual Openings, Inline					Crimp		Red		22 AWG	17.5 AWG				Fully Insulated Heat Shrink							2
3M MH18-6FLX-BOTTLE	Tin	Brazed Seam	Copper, ETP	Snap, Spring	15.49 mm	0.61 in	25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink				0.25 "	6 Stud	6.35 mm
3M MH18-6FLK	Tin	Brazed Seam	Copper, ETP	Snap, Spring	15.49 mm	0.61 in	25.4 mm	1 in	Crimp		Red	Free Hanging (In-Line)	22 AWG	17.5 AWG	Polyolefin	3.81 mm	0.15 in	Insulated with Heat Shrink				0.25 "	6 Stud	6.35 mm
