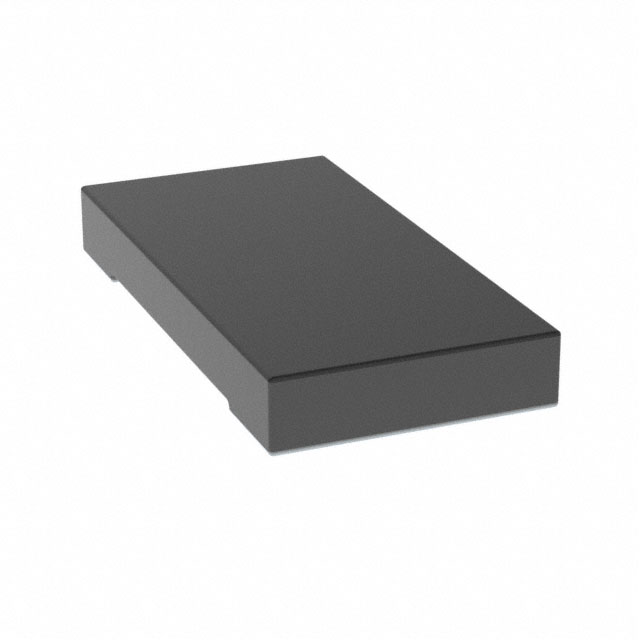

TLR3AWDTE5L00F75
ActiveKOA Speer Electronics, Inc.
RES METAL PLATE 2512 0.005 OHM 1% 2W ±75PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLR3AWDTE5L00F75
ActiveKOA Speer Electronics, Inc.
RES METAL PLATE 2512 0.005 OHM 1% 2W ±75PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLR3AWDTE5L00F75 |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 2 W |
| Ratings | AEC-Q200 |
| Resistance | 5 mOhms |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 3.18 mm |
| Size / Dimension [y] | 0.125 in |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 75 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.59 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.36 | |||
| Tape & Reel (TR) | 2000 | $ 0.36 | ||
Description
General part information
TLR3A Series
5 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
