TLR3APDTEL750F75
ActiveKOA Speer Electronics, Inc.

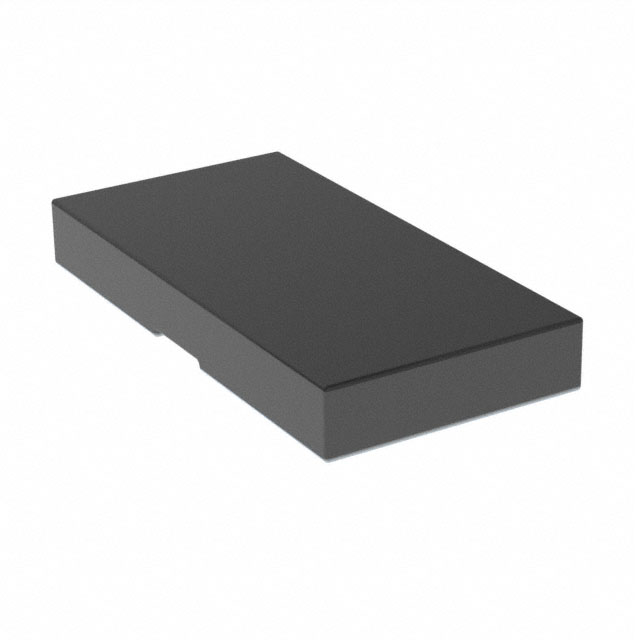

RES 750 UOHM 1% 5W 2512
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLR3APDTEL750F75
ActiveKOA Speer Electronics, Inc.
RES 750 UOHM 1% 5W 2512
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLR3APDTEL750F75 |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 5 W |
| Ratings | AEC-Q200 |
| Resistance | 750 µOhms |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 3.18 mm |
| Size / Dimension [y] | 0.125 in |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 75 ppm/°C |
| Tolerance | 1 % |
TLR3A Series
| Part | Resistance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Terminations | Composition | Power (Watts) | Ratings | Features | Operating Temperature [Max] | Operating Temperature [Min] | Temperature Coefficient | Tolerance | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KOA Speer Electronics, Inc. | 3 mOhms | 0.034 in | 0.87 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 1 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 170 °C | -65 ░C | 200 ppm/°C | 1 % | 6432 Metric | 2512 |
KOA Speer Electronics, Inc. | 3 mOhms | 0.033 " | 0.85 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 2 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 170 °C | -65 ░C | 150 ppm/°C | 1 % | 6432 Metric | 2512 |
KOA Speer Electronics, Inc. | 5 mOhms | 0.033 " | 0.85 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 2 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 155 °C | -65 ░C | 75 ppm/°C | 1 % | 6432 Metric | 2512 |
KOA Speer Electronics, Inc. | 750 µOhms | 0.033 " | 0.85 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 5 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 170 °C | -65 ░C | 75 ppm/°C | 1 % | 6432 Metric | 2512 |
KOA Speer Electronics, Inc. | 9 mOhms | 0.033 " | 0.85 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 3 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 170 °C | -65 ░C | 50 ppm/°C | 1 % | 6432 Metric | 2512 |
KOA Speer Electronics, Inc. | 0.5 mOhms | 0.033 " | 0.85 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 2 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 155 °C | -65 ░C | 75 ppm/°C | 1 % | 6432 Metric | 2512 |
KOA Speer Electronics, Inc. | 10 mOhms | 0.033 " | 0.85 mm | 2512 | 3.18 mm | 0.125 in | 0.25 " | 6.35 mm | 2 | Metal Element | 3 W | AEC-Q200 | Automotive AEC-Q200 Current Sense | 170 °C | -65 ░C | 50 ppm/°C | 1 % | 6432 Metric | 2512 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.39 | |
Description
General part information
TLR3A Series
0.75 mOhms ±1% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
