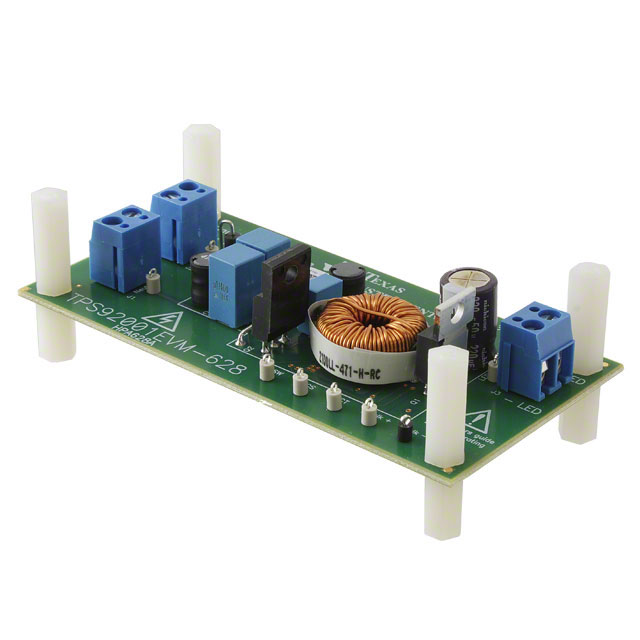

TPS92001EVM-628
ActiveTexas Instruments
EVAL MODULE FOR TPS92001-628
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPS92001EVM-628
ActiveTexas Instruments
EVAL MODULE FOR TPS92001-628
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS92001EVM-628 | TPS92001 Series |
|---|---|---|
| Applications | - | Lighting |
| Current - Output / Channel | 330 mA | 330 mA |
| Dimming | - | TRIAC |
| Features | Dimmable | Dimmable |
| Frequency | - | 100 kHz |
| Internal Switch(s) | - | False |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 105 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 0.118 - 3.9 mm |
| Package / Case | - | 8-SOIC, 8-TSSOP, 8-MSOP |
| Package / Case | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-SOIC |
| Topology | - | Step-Down (Buck), Flyback |
| Type | - | AC DC Offline Switcher |
| Utilized IC / Part | TPS92001 | TPS92001 |
| Voltage - Input [Max] | 135 VAC | 135 VAC |
| Voltage - Input [Min] | 108 VAC | 105 - 108 VAC |
| Voltage - Output | 30 VDC | 5 - 30 VDC |
| Voltage - Supply (Max) | - | 21 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS92001 Series
EVAL MODULE FOR TPS92001-645
| Part | Voltage - Output | Outputs and Type | Outputs and Type | Features | Supplied Contents | Utilized IC / Part | Current - Output / Channel | Voltage - Input [Max] | Voltage - Input [Min] | Frequency | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Max) [Max] | Topology | Dimming | Number of Outputs | Type | Supplier Device Package | Internal Switch(s) | Package / Case | Package / Case | Applications | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30 VDC | Non-Isolated | 1 | Dimmable | Board(s) | TPS92001 | 330 mA | 135 VAC | 105 VAC | ||||||||||||||||
30 VDC | Non-Isolated | 1 | Dimmable | Board(s) | TPS92001 | 330 mA | 135 VAC | 108 VAC | ||||||||||||||||
Texas Instruments TPS92001DRThe TPS92001/2 family of general LED lighting PWM controllers contains control and drive circuitry required for off-line isolated or non-isolated LED lighting applications.
The controllers can support Phase Cut TRIAC dimming with minimal external components. The controllers can also be implemented for stage conversion where the power factor (PF) exceeds regulatory requirements for lighting. These controllers also have an accessible 5-V reference that could be used to power a microcontroller or other low power peripheral components. The controllers operate in fixed frequency current mode switching with minimal external parts count. Internally implemented circuits include undervoltage lockout featuring startup current less than 100 µA, logic to ensure latched operation, a PWM comparator, and a totem pole output stage to sink or source peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the off state. Oscillator frequency and maximum duty cycle are programmed with two resistors and a capacitor.
The TPS92001/2 family also features full cycle soft start. The family offers UVLO thresholds and hysteresis levels for off-line and DC-to-DC systems. The TPS92001/2 is offered in the 8-pin MSOP (DGK) and 8-pin SOIC (D) packages. The small MSOP package makes the device ideally suited for applications where board
The TPS92001/2 family of general LED lighting PWM controllers contains control and drive circuitry required for off-line isolated or non-isolated LED lighting applications.
The controllers can support Phase Cut TRIAC dimming with minimal external components. The controllers can also be implemented for stage conversion where the power factor (PF) exceeds regulatory requirements for lighting. These controllers also have an accessible 5-V reference that could be used to power a microcontroller or other low power peripheral components. The controllers operate in fixed frequency current mode switching with minimal external parts count. Internally implemented circuits include undervoltage lockout featuring startup current less than 100 µA, logic to ensure latched operation, a PWM comparator, and a totem pole output stage to sink or source peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the off state. Oscillator frequency and maximum duty cycle are programmed with two resistors and a capacitor.
The TPS92001/2 family also features full cycle soft start. The family offers UVLO thresholds and hysteresis levels for off-line and DC-to-DC systems. The TPS92001/2 is offered in the 8-pin MSOP (DGK) and 8-pin SOIC (D) packages. The small MSOP package makes the device ideally suited for applications where board | 5 V | 100 kHz | Surface Mount | -40 °C | 105 °C | 21 V | Flyback, Step-Down (Buck) | TRIAC | 1 | AC DC Offline Switcher | 8-SOIC | 3.9 mm | 8-SOIC | Lighting | ||||||||||
Texas Instruments TPS92001DGKLED Driver IC 1 Output AC DC Offline Switcher Flyback, Step-Down (Buck) Triac Dimming 8-VSSOP | 5 V | 100 kHz | Surface Mount | -40 °C | 105 °C | 21 V | Flyback, Step-Down (Buck) | TRIAC | 1 | AC DC Offline Switcher | 0.118 in | 8-MSOP, 8-TSSOP | Lighting | 3 mm | ||||||||||
Texas Instruments TPS92001DGKRThe TPS92001/2 family of general LED lighting PWM controllers contains control and drive circuitry required for off-line isolated or non-isolated LED lighting applications.
The controllers can support Phase Cut TRIAC dimming with minimal external components. The controllers can also be implemented for stage conversion where the power factor (PF) exceeds regulatory requirements for lighting. These controllers also have an accessible 5-V reference that could be used to power a microcontroller or other low power peripheral components. The controllers operate in fixed frequency current mode switching with minimal external parts count. Internally implemented circuits include undervoltage lockout featuring startup current less than 100 µA, logic to ensure latched operation, a PWM comparator, and a totem pole output stage to sink or source peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the off state. Oscillator frequency and maximum duty cycle are programmed with two resistors and a capacitor.
The TPS92001/2 family also features full cycle soft start. The family offers UVLO thresholds and hysteresis levels for off-line and DC-to-DC systems. The TPS92001/2 is offered in the 8-pin MSOP (DGK) and 8-pin SOIC (D) packages. The small MSOP package makes the device ideally suited for applications where board
The TPS92001/2 family of general LED lighting PWM controllers contains control and drive circuitry required for off-line isolated or non-isolated LED lighting applications.
The controllers can support Phase Cut TRIAC dimming with minimal external components. The controllers can also be implemented for stage conversion where the power factor (PF) exceeds regulatory requirements for lighting. These controllers also have an accessible 5-V reference that could be used to power a microcontroller or other low power peripheral components. The controllers operate in fixed frequency current mode switching with minimal external parts count. Internally implemented circuits include undervoltage lockout featuring startup current less than 100 µA, logic to ensure latched operation, a PWM comparator, and a totem pole output stage to sink or source peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the off state. Oscillator frequency and maximum duty cycle are programmed with two resistors and a capacitor.
The TPS92001/2 family also features full cycle soft start. The family offers UVLO thresholds and hysteresis levels for off-line and DC-to-DC systems. The TPS92001/2 is offered in the 8-pin MSOP (DGK) and 8-pin SOIC (D) packages. The small MSOP package makes the device ideally suited for applications where board | 5 V | 100 kHz | Surface Mount | -40 °C | 105 °C | 21 V | Flyback, Step-Down (Buck) | TRIAC | 1 | AC DC Offline Switcher | 0.118 in | 8-MSOP, 8-TSSOP | Lighting | 3 mm | ||||||||||
Texas Instruments TPS92001DThe TPS92001/2 family of general LED lighting PWM controllers contains control and drive circuitry required for off-line isolated or non-isolated LED lighting applications.
The controllers can support Phase Cut TRIAC dimming with minimal external components. The controllers can also be implemented for stage conversion where the power factor (PF) exceeds regulatory requirements for lighting. These controllers also have an accessible 5-V reference that could be used to power a microcontroller or other low power peripheral components. The controllers operate in fixed frequency current mode switching with minimal external parts count. Internally implemented circuits include undervoltage lockout featuring startup current less than 100 µA, logic to ensure latched operation, a PWM comparator, and a totem pole output stage to sink or source peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the off state. Oscillator frequency and maximum duty cycle are programmed with two resistors and a capacitor.
The TPS92001/2 family also features full cycle soft start. The family offers UVLO thresholds and hysteresis levels for off-line and DC-to-DC systems. The TPS92001/2 is offered in the 8-pin MSOP (DGK) and 8-pin SOIC (D) packages. The small MSOP package makes the device ideally suited for applications where board
The TPS92001/2 family of general LED lighting PWM controllers contains control and drive circuitry required for off-line isolated or non-isolated LED lighting applications.
The controllers can support Phase Cut TRIAC dimming with minimal external components. The controllers can also be implemented for stage conversion where the power factor (PF) exceeds regulatory requirements for lighting. These controllers also have an accessible 5-V reference that could be used to power a microcontroller or other low power peripheral components. The controllers operate in fixed frequency current mode switching with minimal external parts count. Internally implemented circuits include undervoltage lockout featuring startup current less than 100 µA, logic to ensure latched operation, a PWM comparator, and a totem pole output stage to sink or source peak current. The output stage, suitable for driving N-Channel MOSFETs, is low in the off state. Oscillator frequency and maximum duty cycle are programmed with two resistors and a capacitor.
The TPS92001/2 family also features full cycle soft start. The family offers UVLO thresholds and hysteresis levels for off-line and DC-to-DC systems. The TPS92001/2 is offered in the 8-pin MSOP (DGK) and 8-pin SOIC (D) packages. The small MSOP package makes the device ideally suited for applications where board | 5 V | 100 kHz | Surface Mount | -40 °C | 105 °C | 21 V | Flyback, Step-Down (Buck) | TRIAC | 1 | AC DC Offline Switcher | 8-SOIC | 3.9 mm | 8-SOIC | Lighting |
Description
General part information
TPS92001 Series
TPS92001 1, Non-Isolated Outputs LED Driver Evaluation Board
