STGP20M65DF2

Active

STMicroelectronics

IGBTS TRENCH GATE FIELD-STOP IGBT M SERIES, 650 V 20 A LOW LOSS

Find alt

Alpha

STGP20M65DF2

Active

STMicroelectronics

IGBTS TRENCH GATE FIELD-STOP IGBT M SERIES, 650 V 20 A LOW LOSS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

STGP20 Series

This device is an IGBT developed using an advanced proprietary trench gate field-stop structure. The device is part of the M series IGBTs, which represent an optimal balance between inverter system performance and efficiency where the low-loss and the short-circuit functionality is essential. Furthermore, the positive VCE(sat)temperature coefficient and the tight parameter distribution result in safer paralleling operation.

Technical Specifications

Parameters and characteristics for this part

Specification	STGP20M65DF2

Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	80 A
Gate Charge	63 nC
IGBT Type	Trench Field Stop
Input Type	Standard
Mounting Type	Through Hole
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-55 °C

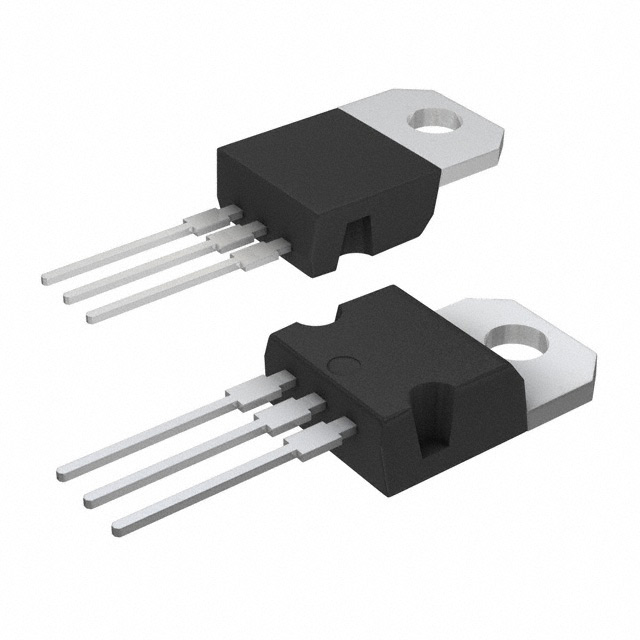

Package / Case	TO-220-3
Package Name	TO-220
Power - Max	166 W
Reverse Recovery Time (trr)	166 ns
Switching Energy (Off)	560 µJ
Switching Energy (On)	140 µJ
Td (off) @ 25°C	108 ns
Td (on) @ 25°C	26 ns
Test Condition Current	20 A
Test Condition Resistance	12 Ohm
Test Condition Voltage	400 V
Test Condition Voltage (Secondary)	15 V
Vce(on) (Max)	2 V
Voltage - Collector Emitter Breakdown (Max)	650 V

STGP20 Series

Trench gate field-stop IGBT M series, 650 V 20 A low loss

Part	Package Name	Voltage - Collector Emitter Breakdown (Max)	Switching Energy (Off)	Switching Energy (On)	Mounting Type	Vce(on) (Max)	Reverse Recovery Time (trr)	Current - Collector Pulsed (Icm)	Gate Charge	Test Condition Voltage (Secondary)	Test Condition Current	Test Condition Resistance	Test Condition Voltage	Power - Max	Current - Collector (Ic) (Max)	Input Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Td (on) @ 25°C	Td (off) @ 25°C	IGBT Type
STMicroelectronics STGP20M65DF2	TO-220	650 V	560 µJ	140 µJ	Through Hole	2 V	166 ns	80 A	63 nC	15 V	20 A	12 Ohm	400 V	166 W	40 A	Standard	-55 °C	175 °C	TO-220-3	26 ns	108 ns	Trench Field Stop
STMicroelectronics STGP20H65DFB2	TO-220	650 V	214 µJ	265 µJ	Through Hole	2.1 V	215 ns	60 A	56 nC	15 V	20 A	10 Ohm	400 V	147 W	40 A	Standard	-55 °C	175 °C	TO-220-3	16 ns	78.8 ns	Trench Field Stop
