NT-MIL-5/8-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

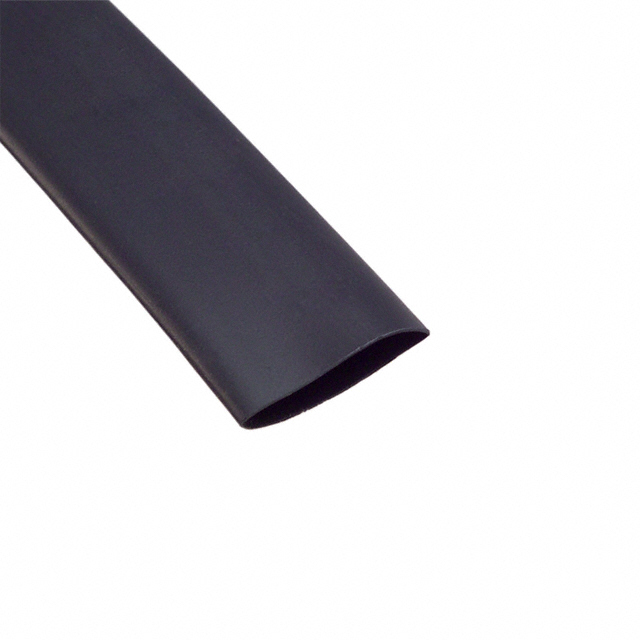

HEATSHRINK 0.625" BLACK FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRW-3030 Spec Sheet Datasheet +1

NT-MIL-5/8-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 0.625" BLACK FEET

Deep-Dive with AI

DocumentsRW-3030 Spec Sheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NT-MIL-5/8-0-SP	NT-MIL Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	9.09 mm	9.09 mm
Inner Diameter - Recovered	0.358 in	0.358 in
Inner Diameter - Recovered	-	0.57 - 57.91 mm
Inner Diameter - Recovered	-	0.102 - 2.28 "
Inner Diameter - Recovered	-	14.48 mm
Inner Diameter - Supplied [diameter]	0.625 in	0.187 - 4 in
Inner Diameter - Supplied [diameter]	15.88 mm	4.75 - 101.6 mm
Length	7.6 m, 1.52 m, 15.2 m	1.52 - 22.9 m
Length	25 ft, 5 ', 50 ft	5 - 50 '
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-70 °C	-70 °C
Qualification	AMS-DTL-23053/1	AMS-DTL-23053/1
Recovered Wall Thickness	1.32 mm	0.048 - 2.71 mm
Recovered Wall Thickness	0.052 in	0.033 - 0.107 in
Recovered Wall Thickness	-	1.22 - 3.55 mm
Recovered Wall Thickness	-	0.057 in
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	1.75	1.75
Shrinkage Ratio [Min]	1	1
Spool Size	91.4 m	61 - 91.4 m
Spool Size	300 ft	200 - 300 ft
Type	Tubing, Flexible	Tubing, Flexible

NT-MIL Series

HEAT SHRINK TUBING 1=1FT

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Shrink Temperature	Material	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Qualification	Color	Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Recovered Wall Thickness	Length	Spool Size	Spool Size	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness [custom]
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-1/2-0-SP	21.79 mm	0.858 "	24 Months	135 C	Polyolefin (PO)	1	1.75	0.095 in	2.41 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	38.1 mm	1.5 in	Flame Retardant
TE Connectivity Aerospace, Defense and Marine NT-MIL-4-0-SP	57.91 mm	2.28 in	24 Months	135 C	Polyolefin (PO)	1	1.75		0.139 "	AMS-DTL-23053/1	Black	Tubing, Flexible	15.2 m	50 ft	-70 °C	121 °C	Date of Manufacture	101.6 mm	4 "	Flame Retardant	3.55 mm
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/16-0-SP	2.59 mm	0.102 "	24 Months	135 C	Polyolefin (PO)	1	1.75	0.033 in	0.84 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	15.2 m	50 ft	-70 °C	121 °C	Date of Manufacture	4.75 mm	0.187 in	Flame Retardant		Enter Number of Feet in Order Quantity	91.4 m	300 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-0-SP	0.57 in		24 Months	135 C	Polyolefin (PO)	1	1.75	0.07 "	1.78 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	25.4 mm	1 in	Flame Retardant		Enter Number of Feet in Order Quantity	61 m	200 '	30.5 m	100 ft	14.48 mm
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/8-0-SP	5.36 mm	0.211 in	24 Months	135 C	Polyolefin (PO)	1	1.75	0.04 in	1.02 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	7.6 m, 15.2 m	25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	9.53 mm	0.375 in	Flame Retardant
TE Connectivity Aerospace, Defense and Marine NT-MIL-5/8-0-SP			24 Months	135 C	Polyolefin (PO)	1	1.75	0.052 in	1.32 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	15.88 mm	0.625 in	Flame Retardant		Enter Number of Feet in Order Quantity	91.4 m	300 ft	30.5 m	100 ft		9.09 mm	0.358 in
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/4-0-SP	10.87 mm	0.428 in	24 Months	135 C	Polyolefin (PO)	1	1.75		1.45 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m	5 ', 25 ft	-70 °C	121 °C	Date of Manufacture			Flame Retardant					30.5 m	100 ft				0.057 in
TE Connectivity Aerospace, Defense and Marine NT-MIL-1/2-0-SP	7.26 mm	0.286 in	24 Months	135 C	Polyolefin (PO)	1	1.75		0.048 in	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	12.7 mm	0.5 in	Flame Retardant	1.22 mm	Enter Number of Feet in Order Quantity	91.4 m	300 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-3/4-0-SP	25.4 mm	1 in	24 Months	135 C	Polyolefin (PO)	1	1.75	0.107 in	2.71 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	22.9 m	22.86 m	-70 °C	121 °C	Date of Manufacture	44.45 mm	1.75 in	Flame Retardant
TE Connectivity Aerospace, Defense and Marine NT-MIL-1/4-0-SP	3.63 mm	0.143 in	24 Months	135 C	Polyolefin (PO)	1	1.75	0.035 in	0.89 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m	5 ', 25 ft	-70 °C	121 °C	Date of Manufacture	6.35 mm	0.25 in	Flame Retardant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 198.80
		1	$ 347.57
		1	$ 26.28
	Digi-Spool®, Continuous Spool	1	$ 7.89
		5	$ 7.56
		10	$ 5.92
		25	$ 5.26
		50	$ 4.93
		100	$ 4.60

Description

General part information

NT-MIL Series

Heat Shrink Tubing, Flexible 0.625" (15.88mm) 1.75 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

RW-3030 Spec Sheet

Datasheet
