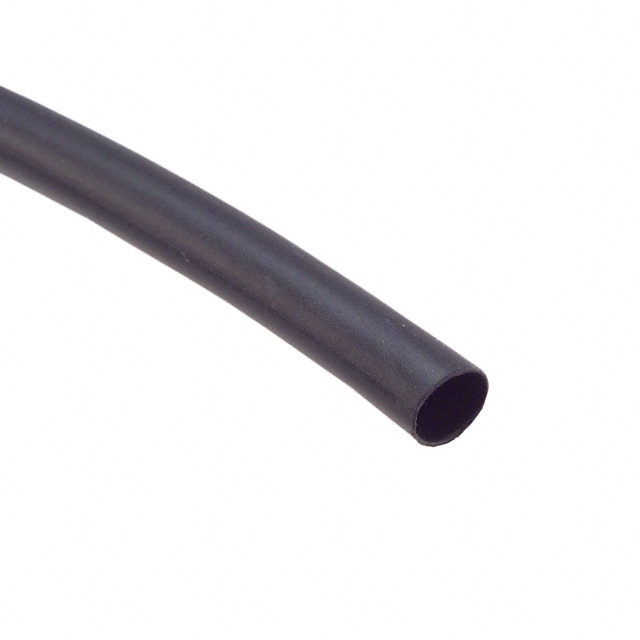

NT-MIL-1/4-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

HEATSHRNK NEOPRENE 1/4" 5' BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RW-3030 Spec Sheet

NT-MIL-1/4-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

HEATSHRNK NEOPRENE 1/4" 5' BLK

Deep-Dive with AI

DocumentsDatasheet RW-3030 Spec Sheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.47
		1	$ 80.77
		1	$ 18.87

Description

General part information

NT-MIL Series

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 1.75 to 1 Black 5.00' (1.52m)

Documents

Technical documentation and resources

Datasheet

RW-3030 Spec Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NT-MIL-1/4-0-SP	NT-MIL Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	-	14.48 mm
Inner Diameter - Recovered	-	9.09 mm
Inner Diameter - Recovered	-	0.358 in
Inner Diameter - Recovered [diameter]	0.143 in	0.102 - 2.28 "
Inner Diameter - Recovered [diameter]	3.63 mm	0.57 - 57.91 mm
Inner Diameter - Supplied [diameter]	0.25 in	0.187 - 4 in
Inner Diameter - Supplied [diameter]	6.35 mm	4.75 - 101.6 mm
Length	1.52 m, 7.6 m	1.52 - 22.9 m
Length	5 ', 25 ft	5 - 50 '
Length	-	Enter Number of Feet in Order Quantity
Length	-	30.5 m
Length	-	100 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-70 °C	-70 °C
Qualification	AMS-DTL-23053/1	AMS-DTL-23053/1
Recovered Wall Thickness	0.89 mm	0.048 - 2.71 mm
Recovered Wall Thickness	0.035 in	0.033 - 0.107 in
Recovered Wall Thickness	-	1.22 - 3.55 mm
Recovered Wall Thickness	-	0.057 in
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	1.75	1.75
Shrinkage Ratio [Min]	1	1
Spool Size	-	61 - 91.4 m
Spool Size	-	200 - 300 ft
Type	Tubing, Flexible	Tubing, Flexible

NT-MIL Series

HEAT SHRINK TUBING 1=1FT

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Shrink Temperature	Material	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Qualification	Color	Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Recovered Wall Thickness	Length	Spool Size	Spool Size	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered	Recovered Wall Thickness [custom]
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-1/2-0-SP	21.79 mm	0.858 "	24 Months	135 C	Polyolefin (PO)	1	1.75	0.095 in	2.41 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	38.1 mm	1.5 in	Flame Retardant
TE Connectivity Aerospace, Defense and Marine NT-MIL-4-0-SP	57.91 mm	2.28 in	24 Months	135 C	Polyolefin (PO)	1	1.75		0.139 "	AMS-DTL-23053/1	Black	Tubing, Flexible	15.2 m	50 ft	-70 °C	121 °C	Date of Manufacture	101.6 mm	4 "	Flame Retardant	3.55 mm
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/16-0-SP	2.59 mm	0.102 "	24 Months	135 C	Polyolefin (PO)	1	1.75	0.033 in	0.84 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	15.2 m	50 ft	-70 °C	121 °C	Date of Manufacture	4.75 mm	0.187 in	Flame Retardant		Enter Number of Feet in Order Quantity	91.4 m	300 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-0-SP	0.57 in		24 Months	135 C	Polyolefin (PO)	1	1.75	0.07 "	1.78 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	25.4 mm	1 in	Flame Retardant		Enter Number of Feet in Order Quantity	61 m	200 '	30.5 m	100 ft	14.48 mm
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/8-0-SP	5.36 mm	0.211 in	24 Months	135 C	Polyolefin (PO)	1	1.75	0.04 in	1.02 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	7.6 m, 15.2 m	25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	9.53 mm	0.375 in	Flame Retardant
TE Connectivity Aerospace, Defense and Marine NT-MIL-5/8-0-SP			24 Months	135 C	Polyolefin (PO)	1	1.75	0.052 in	1.32 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	15.88 mm	0.625 in	Flame Retardant		Enter Number of Feet in Order Quantity	91.4 m	300 ft	30.5 m	100 ft		9.09 mm	0.358 in
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/4-0-SP	10.87 mm	0.428 in	24 Months	135 C	Polyolefin (PO)	1	1.75		1.45 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m	5 ', 25 ft	-70 °C	121 °C	Date of Manufacture			Flame Retardant					30.5 m	100 ft				0.057 in
TE Connectivity Aerospace, Defense and Marine NT-MIL-1/2-0-SP	7.26 mm	0.286 in	24 Months	135 C	Polyolefin (PO)	1	1.75		0.048 in	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	-70 °C	121 °C	Date of Manufacture	12.7 mm	0.5 in	Flame Retardant	1.22 mm	Enter Number of Feet in Order Quantity	91.4 m	300 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-3/4-0-SP	25.4 mm	1 in	24 Months	135 C	Polyolefin (PO)	1	1.75	0.107 in	2.71 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	22.9 m	22.86 m	-70 °C	121 °C	Date of Manufacture	44.45 mm	1.75 in	Flame Retardant
TE Connectivity Aerospace, Defense and Marine NT-MIL-1/4-0-SP	3.63 mm	0.143 in	24 Months	135 C	Polyolefin (PO)	1	1.75	0.035 in	0.89 mm	AMS-DTL-23053/1	Black	Tubing, Flexible	1.52 m, 7.6 m	5 ', 25 ft	-70 °C	121 °C	Date of Manufacture	6.35 mm	0.25 in	Flame Retardant
