NT-MIL-1-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

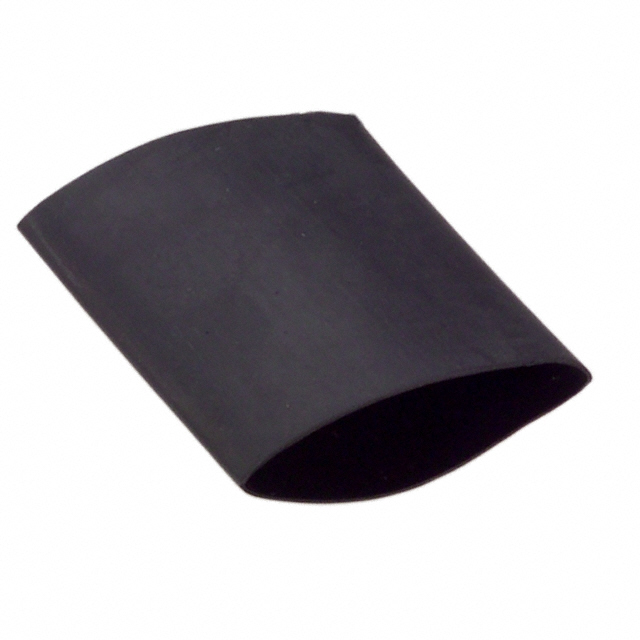

HEATSHRINK NEOPRENE 1" BLK FEET

Deep-Dive with AI

Search across all available documentation for this part.

NT-MIL-1-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK NEOPRENE 1" BLK FEET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NT-MIL-1-0-SP	NT-MI Series

Color	Black	Black
Features	Flame Retardant	Flame Retardant
Inner Diameter - Recovered	-	14.5 - 43.43 mm
Inner Diameter - Recovered	-	0.571 - 1.71 "
Inner Diameter - Recovered	-	0.102 - 0.5 "
Inner Diameter - Recovered [diameter]	0.57 in	0.57 - 12.7 mm
Inner Diameter - Recovered [diameter]	14.48 mm	14.48 mm
Inner Diameter - Supplied [diameter]	1 in	0.187 - 3 in
Inner Diameter - Supplied [diameter]	25.4 mm	4.75 - 76.2 mm
Length	7.6 m, 1.52 m, 15.2 m	1.52 - 91.4 m
Length	25 ft, 5 ', 50 ft	5 - 300 ft
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length [x]	30.5 m	30.5 - 61 m
Length [x]	100 ft	100 - 200 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-70 °C	-70 °C
Qualification	AMS-DTL-23053/1	AMS-DTL-23053/1
Recovered Wall Thickness	1.78 mm	0.048 - 3.17 mm
Recovered Wall Thickness	0.07 "	0.033 - 0.124 in
Recovered Wall Thickness	-	1.22 mm
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	1.75	1.75
Shrinkage Ratio [Min]	1	1
Spool Size	61 m	61 - 91.4 m
Spool Size	200 '	200 - 300 ft
Type	Tubing, Flexible	Tubing, Flexible

NT-MI Series

HEATSHRINK 3" X 50' BLACK

Part	Type	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life Start	Material	Shelf Life	Features	Inner Diameter - Recovered	Inner Diameter - Recovered	Qualification	Shrink Temperature	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Spool Size	Spool Size	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness
TE Connectivity Aerospace, Defense and Marine NT-MIL-3-0-SP	Tubing, Flexible	3.17 mm	0.124 in	-70 °C	121 °C	1	1.75	Black	3 in	76.2 mm	Date of Manufacture	Polyolefin (PO)	24 Months	Flame Retardant	43.43 mm	1.71 "	AMS-DTL-23053/1	135 C	15.2 m	50 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-3/16-0-SP	Tubing, Flexible	0.84 mm	0.033 in	-70 °C	121 °C	1	1.75	Black	0.187 in	4.75 mm	Date of Manufacture	Polyolefin (PO)	24 Months	Flame Retardant			AMS-DTL-23053/1	135 C	15.2 m	50 ft	0.102 "	2.59 mm	Enter Number of Feet in Order Quantity	91.4 m	300 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-0-SP	Tubing, Flexible	1.78 mm	0.07 "	-70 °C	121 °C	1	1.75	Black	1 in	25.4 mm	Date of Manufacture	Polyolefin (PO)	24 Months	Flame Retardant			AMS-DTL-23053/1	135 C	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft		0.57 in	Enter Number of Feet in Order Quantity	61 m	200 '	30.5 m	100 ft	14.48 mm
TE Connectivity Aerospace, Defense and Marine NT-MIL-1/2-0-SP	Tubing, Flexible	0.048 in		-70 °C	121 °C	1	1.75	Black	0.5 in	12.7 mm	Date of Manufacture	Polyolefin (PO)	24 Months	Flame Retardant			AMS-DTL-23053/1	135 C	1.52 m, 7.6 m, 15.2 m	5 ', 25 ft, 50 ft	0.286 in	7.26 mm	Enter Number of Feet in Order Quantity	91.4 m	300 ft				1.22 mm
TE Connectivity Aerospace, Defense and Marine NT-MIL-1-0-BULK-SP	Tubing, Flexible	1.78 mm	0.07 "	-70 °C	121 °C	1	1.75	Black	1 in	25.4 mm	Date of Manufacture	Polyolefin (PO)	24 Months	Flame Retardant	14.5 mm	0.571 "	AMS-DTL-23053/1	135 C	91.4 m	300 ft
TE Connectivity Aerospace, Defense and Marine NT-MIL-7/8-0-SP	Tubing, Flexible	1.65 mm	0.065 in	-70 °C	121 °C	1	1.75	Black	0.874 in	22.2 mm	Date of Manufacture	Polyolefin (PO)	24 Months	Flame Retardant			AMS-DTL-23053/1	135 C			0.5 in	12.7 mm				61 m	200 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 157.36
		1	$ 9.65
		1	$ 37.51
		1	$ 275.20
		1	$ 550.07
	Digi-Spool®, Continuous Spool	1	$ 11.26
		5	$ 10.75
		10	$ 8.19
		25	$ 7.68
		50	$ 7.17
		100	$ 6.81

Description

General part information

NT-MI Series

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 1.75 to 1 Black Enter Number of Feet in Order Quantity
