628-3W3-224-7T2

Active

EDAC Inc.

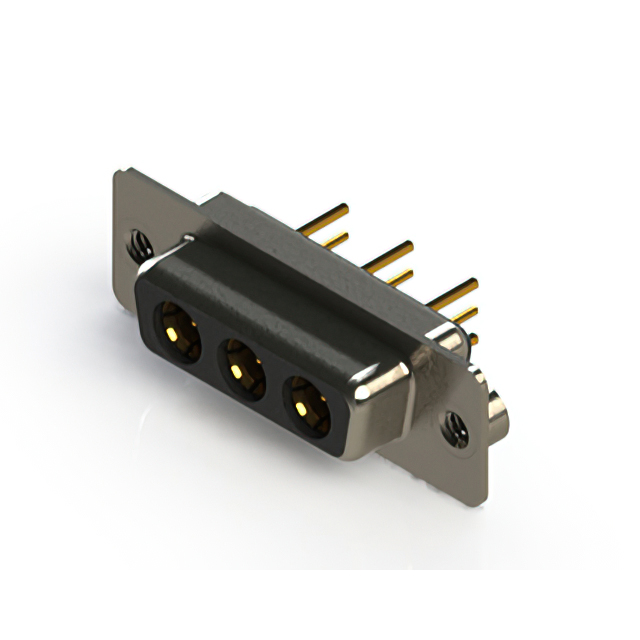

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-3W3, RECEPTACLE, 3 CONTACTS, 3 COAX, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

628-3W3-224-7T2

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-3W3, RECEPTACLE, 3 CONTACTS, 3 COAX, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-3W3-224-7T2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	125 VDC

628-3W3 Series

...

Part	Dielectric Material	Contact Material	Contact Finish	Connector Style	Number of Rows	Features	Voltage Rating	Flange Feature	Color	Termination	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 628-3W3-224-4TE	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Board Lock Shielded	125 VDC	M3	Black	Solder	Through Hole	3	Flash	Signal and Power	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets	40 A	2 (DA A)	3W3
EDAC Inc. 628-3W3-624-4TD	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Board Lock Shielded	125 VDC	Board Side (M3)	Black	Solder	Through Hole	3		Signal and Power	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets	40 A	2 (DA A)	3W3	0.76 Ám	30 Áin
EDAC Inc. 628-3W3-624-2N2	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Shielded	125 VDC	4-40 Board Side	Black	Solder	Through Hole	3		Signal and Power	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets	20 A	2 (DA A)	3W3	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 628-3W3-224-5TA	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Shielded	125 VDC	Board Side (M3)	Black	Solder	Through Hole	3	Flash	Coax Signal	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets		2 (DA A)	3W3
EDAC Inc. 628-3W3-624-4N5	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Board Lock Shielded	125 VDC	4-40 Board Side	Black	Solder	Through Hole	3		Signal and Power	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets	40 A	2 (DA A)	3W3	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 628-3W3-224-7T2	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Shielded	125 VDC	4-40 Board Side	Black	Solder	Through Hole	3	Flash	Coax Signal	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets		2 (DA A)	3W3
EDAC Inc. 628-3W3-224-5NE	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Board Lock Shielded	125 VDC	M3	Black	Solder	Through Hole	3	Flash	Coax Signal	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets		2 (DA A)	3W3			Nickel Plated Steel
EDAC Inc. 628-3W3-622-2T1	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Shielded	125 VDC	Housing/Shell (Unthreaded)	Black		Free Hanging (In-Line)	3		Signal and Power	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets	20 A	2 (DA A)	3W3	0.76 Ám	30 Áin
EDAC Inc. 628-3W3-224-5N6	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Board Lock Shielded	125 VDC	4-40	Black	Solder	Through Hole	3	Flash	Coax Signal	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets		2 (DA A)	3W3			Nickel Plated Steel
EDAC Inc. 628-3W3-222-2T1	Polyester Thermoplastic	Copper Alloy	Gold	Combo D-Sub	1	Shielded	125 VDC	Housing/Shell (Unthreaded)	Black		Free Hanging (In-Line)	3	Flash	Signal and Power	-55 °C	125 °C	UL94 V-0	Receptacle Female Sockets	20 A	2 (DA A)	3W3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.86
Newark	Each	100	$ 9.48
		250	$ 9.25
		500	$ 8.92

Description

General part information

628-3W3 Series

3 (Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Drawing EN
